woom OFF AIR 5

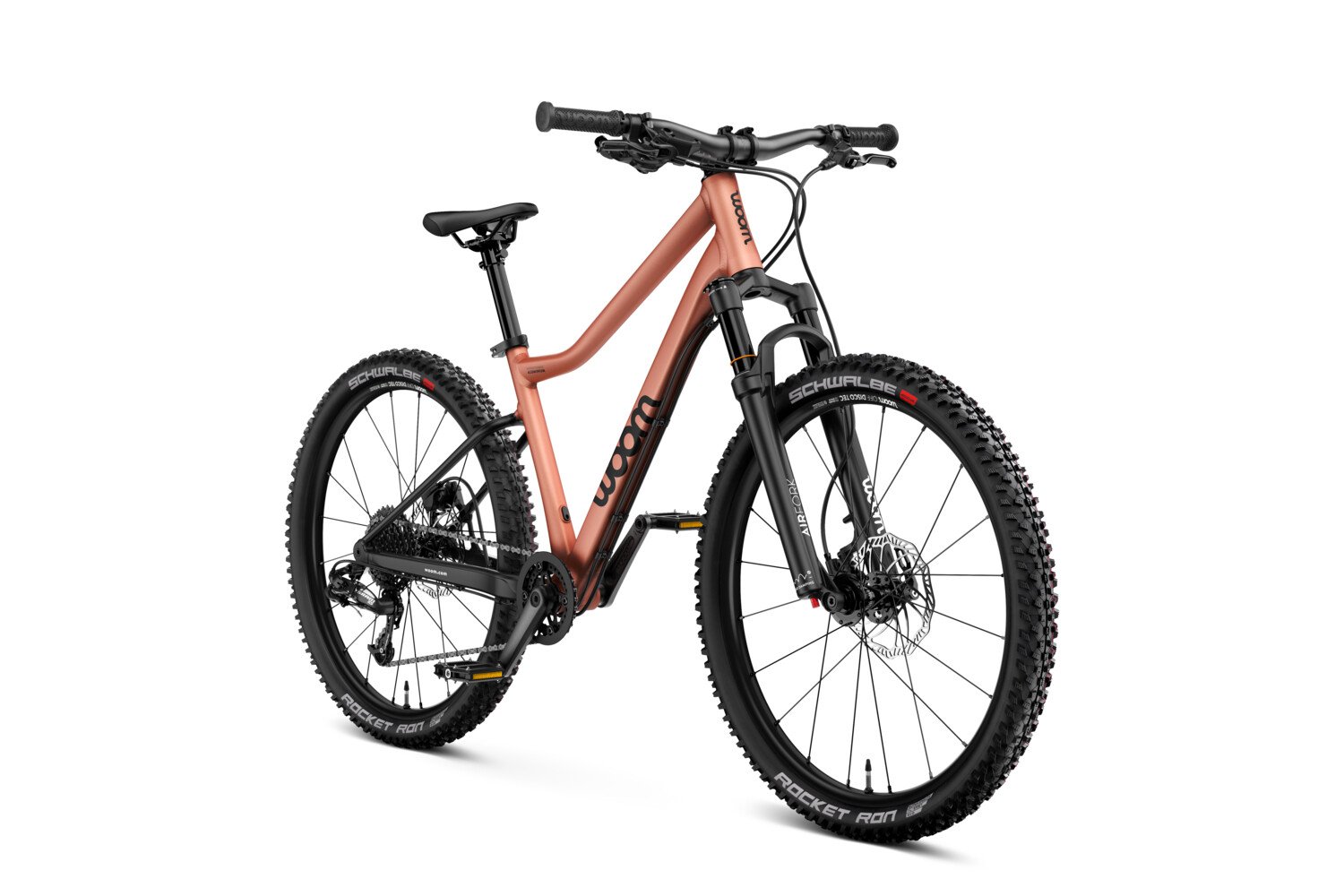

The new 24” woom OFF AIR 5 delivers off-road performance in a lightweight package. Child-specific ergonomics bring comfort and added safety to each adventure.
Rare AIR
The new 24" woom OFF AIR 5 is the bike to take your Rider further and allow them to level up their skills and fun. Whether off-road or on, it provides capability along with ergonomics designed for growing bodies and developing riding abilities. Stable, responsive, and equipped with high-performance front suspension, durable components, and tubeless-compatible rims and tires, it provides best-in-class value in its category. The woom OFF AIR 5, available in black and terra-coppa, is as stylish as it is capable.
Frame
- Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes
- 24″ wheels
- Easy-access low top tube to assist dismounting
- Long wheelbase and low center of gravity to aid balancing
- New, dropper seatpost-ready frame design
- Featuring woom-specific molded chainstay protector
Gears
- 9 speeds
- SRAM X5 trigger shifter
- SRAM X5 rear derailleur
Suspension Fork
- F1RST hydraulic air suspension fork with 80 mm travel, adjustable compression and rebound damping, plus lock-out
- 1 – 1 ⅛″ tapered steerer tube
- 100 x 15 mm thru axle
- Post mount for disc brake
Wheels
- Tubeless-compatible Alexrims wheelset
- Aluminum hubs with sealed industrial bearings
- Thru axles for maximum torsional strength (100 x 15 mm front and 135 x 12 mm rear)
- 20 G14 spokes, double-crossed spoking
- Aluminum nipples
Headset
- Fully integrated 1 – 1 ⅛″ headset
- Sealed industrial bearings
Tires
- 24 x 2.35″ Schwalbe Rocket Ron with ADDIX SPEED rubber compound
- Quality mountain bike tires with low rolling resistance, maximum grip, good shock absorption and excellent durability
- Presta valves, tubeless conversion ready
Stem
- Forged aluminum
- CNC-machined
- Handlebars attached via two clamps
- Rise/drop: +/-15° with flip-flop design to adjust handlebar height
- Length: 50 mm
Saddle
- Ergonomically designed to fit children's anatomy
- Streamlined mountain-bike specific saddle design
- Side protection to lean against walls
Handlebars
- Wide, ergonomically adapted and lightweight aluminum bars for more control
- Tapered end to fit child’s hand
- Sandblasted and silver anodized
- Width: 585 mm
- Rise: 20 mm
Seatpost
- 27.2 x 250 mm
- Anodized aluminum seatpost with insertion marks that indicate the minimum insertion depth
- Quick-release seatpost clamp
Grips
- Child-friendly thanks to small diameter
- Single-clamp grip to prevent twisting
- Safety zone: extra rubber on palm-facing portion of grip for added comfort
- 100% silicone for maximum grip
Seatpost Clamp
- Quick-release seatpost clamp for easy adjustments
- Made from aluminum
Drivetrain
- Lightweight, forged aluminum 5.1" (130 mm) kid-specific cranks with narrow tread (Q-factor)
- Narrow-wide chainring with 28 teeth in the front
- Cassette with 11-34 teeth in the back
- Flat pedals made from fiber-reinforced nylon
- Chromoly axle and sealed industrial ball bearings
Brakes
- Hydraulic disc brakes by Promax
- Rotor diameter front/back: 160/160 mm
- Ergonomic brake levers designed for children's hands
Weight
- Bike weight: 23 lbs 15 oz
- Max weight: 155 lbs combined weight of Rider + cargo
Colors
- Black
- Terra Coppa
Enclosed Tools
- 4 mm hex key for stem and seatpost clamp
- 8 mm hex key for front wheel and pedals
Shipping Dimensions
- 52 x 27.6 x 9”
Model | Inseam | Height |
| woom OFF 4 | 22.8″ - 28.7″ | 46″ - 51″ |
| woom OFF 5 | 27.8″ - 33.7″ | 50″ - 57″ |
| woom OFF 6 | 30.3″ - 37.8″ | 55″ - 65″ |
| woom OFF AIR 4 | 22.8″ - 28.7″ | 46″ - 51″ |
| woom OFF AIR 5 | 28.3″ - 34.3″ | 50″ - 57″ |
| woom OFF AIR 6 | 30.7″ - 38.2″ | 55″ - 65″ |
Unsure how to measure inseam? Can't decide between two sizes? Check out our What Size is Right?article
Your OFF-road adventure can begin shortly!
In just a few steps, your woom OFF will be ready for its first ride. Check out this video to find out exactly what to do.
Assembly instructions
Instructions for Use
You can find more information in our service and help area.
The woom 10-year warranty
Inspiring children to love riding their bikes is our mission at woom. That's why we guarantee the premium quality of every bike down to the last detail with innovative technology and long-lasting materials.
We have full confidence in our bikes, which is why we offer a 10-year warranty on the aluminum frames, rigid forks, bars and stem once you've registered online.
