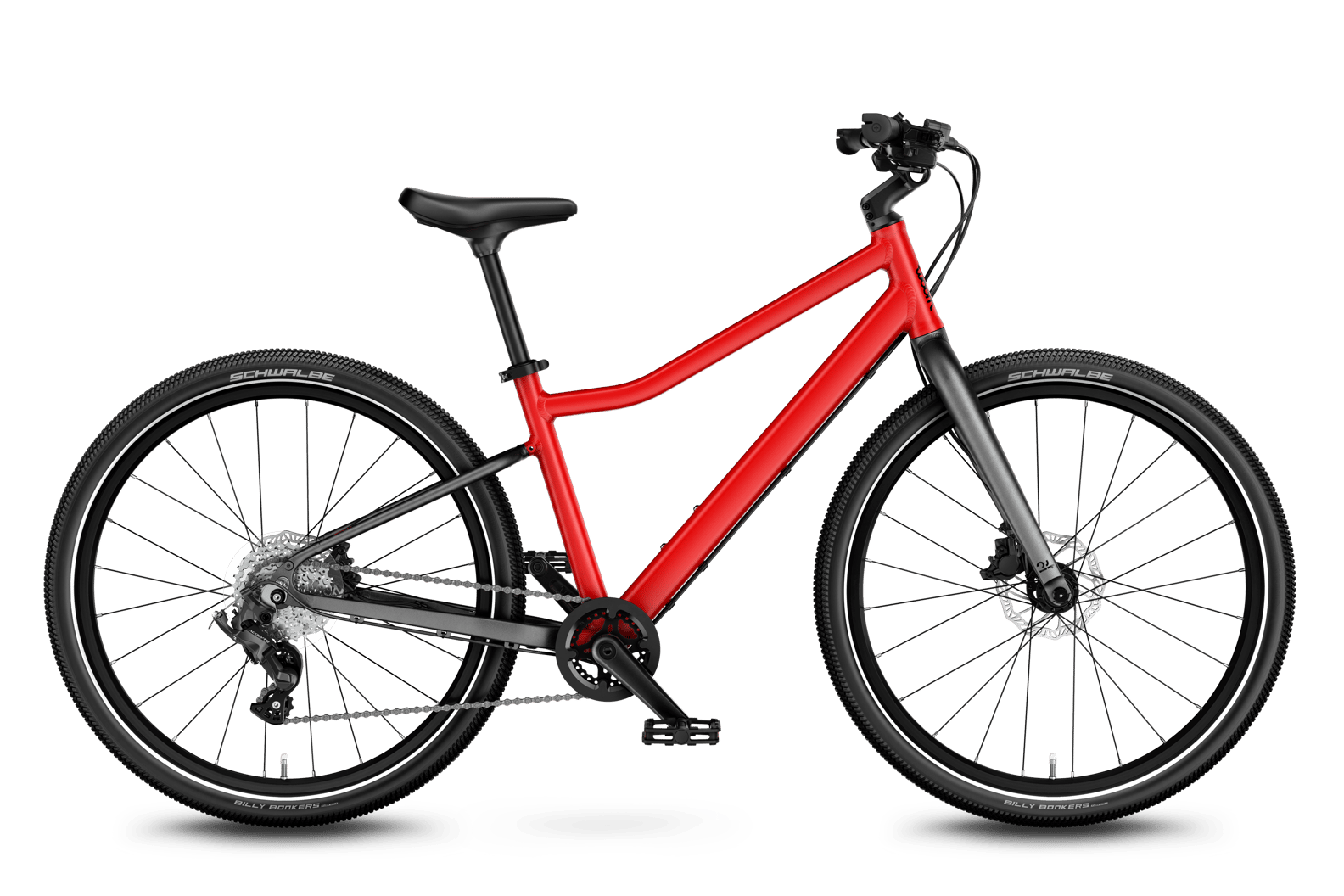

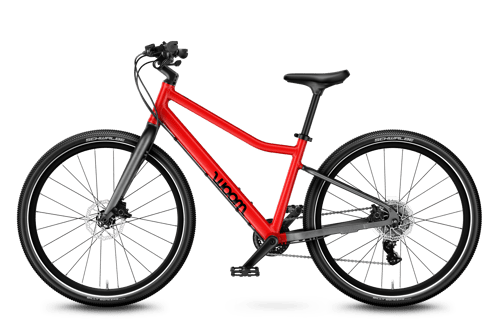

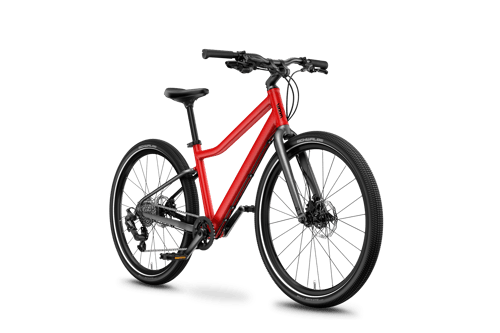

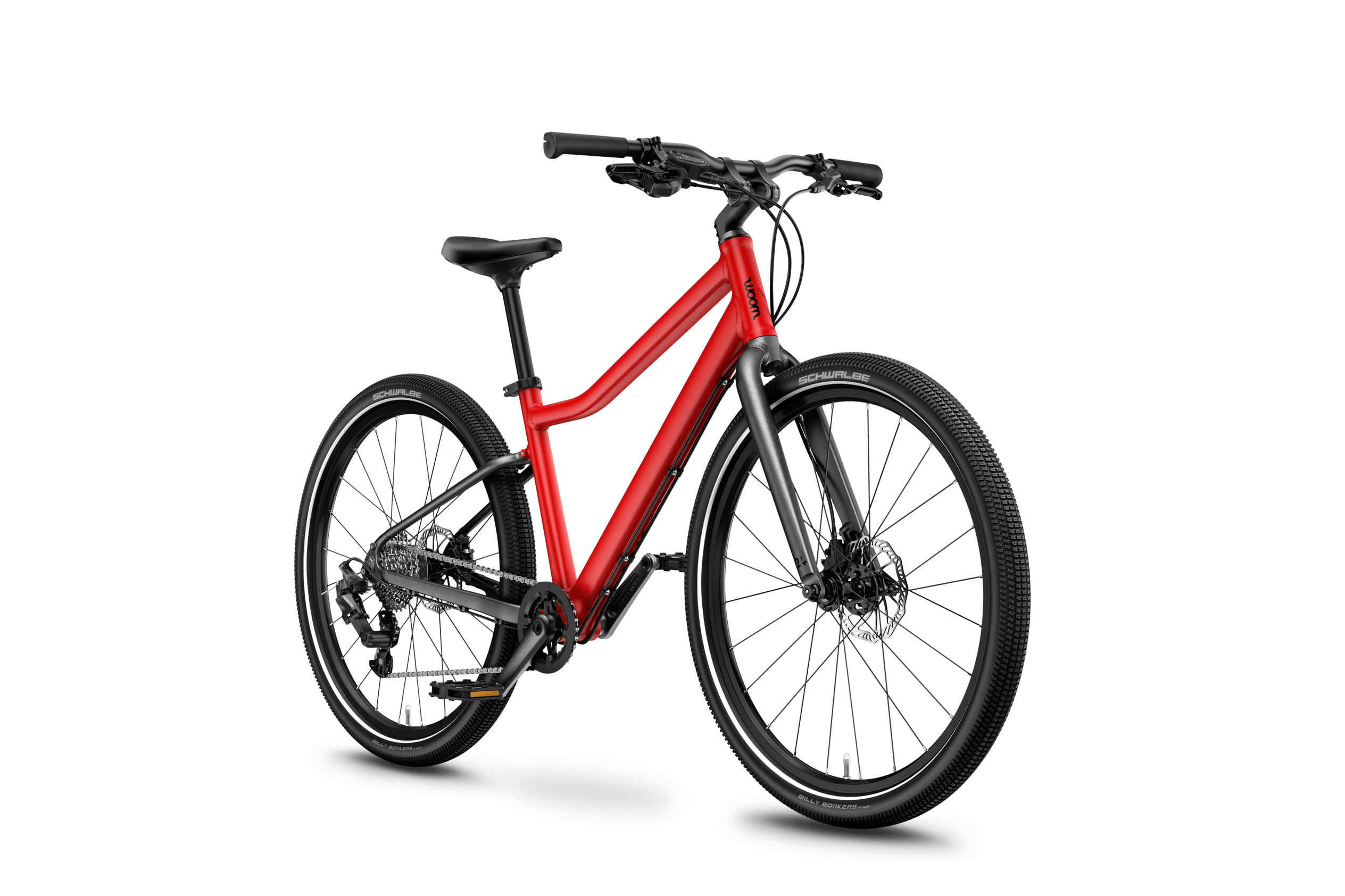

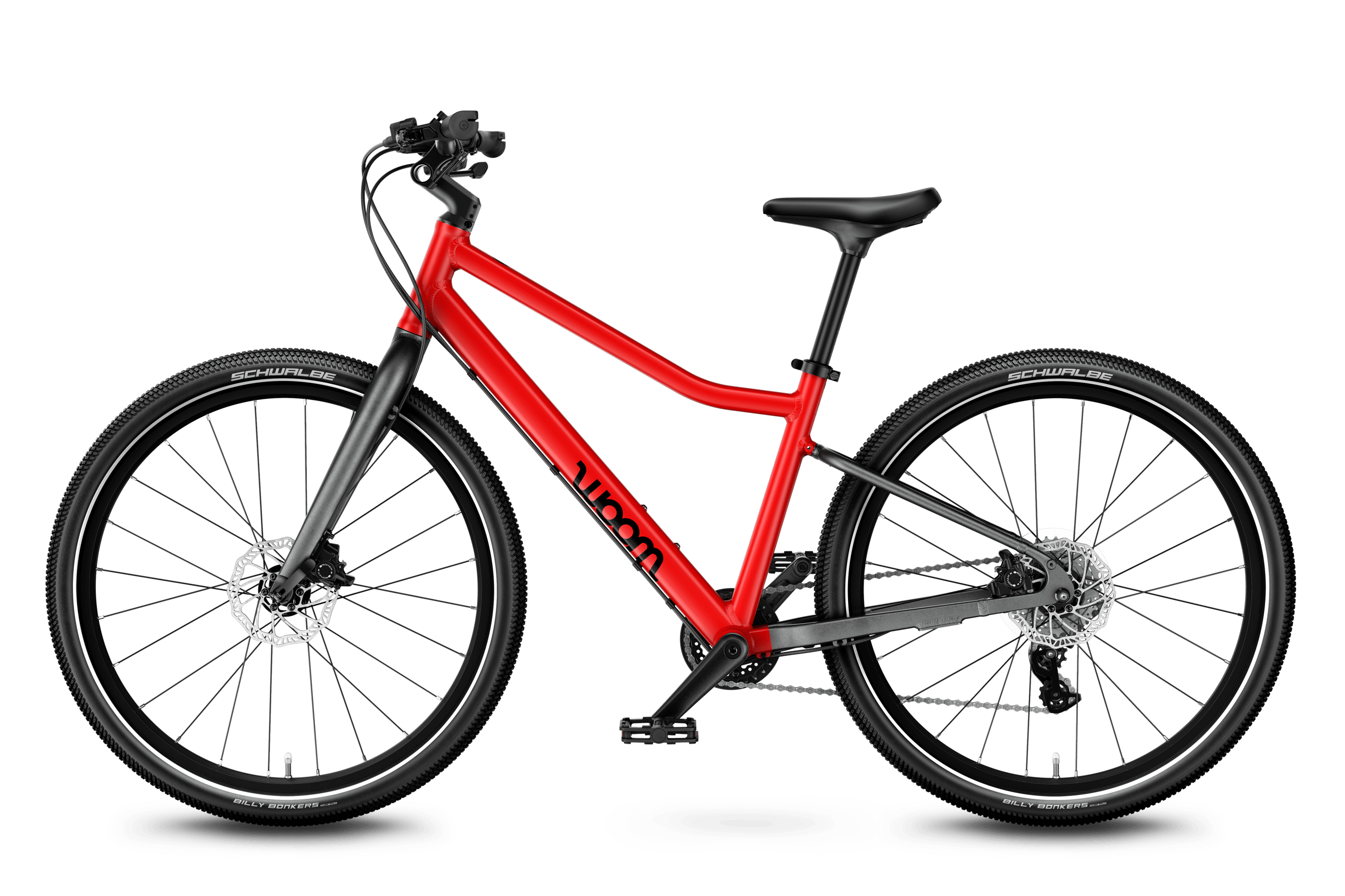

woom EXPLORE 5
The superlight, all-rounder 24" children's bike for riders aged seven and up with disc brakes, 8 gears and all-terrain tires.
Frame
- Frame material: lightweight, high-quality AA 6061 aluminum with butted tubes
- 24" wheels
- Child-specific, sporty geometry with a slight kink in the top tube and angular tube profile for a comfy ride and standout style.

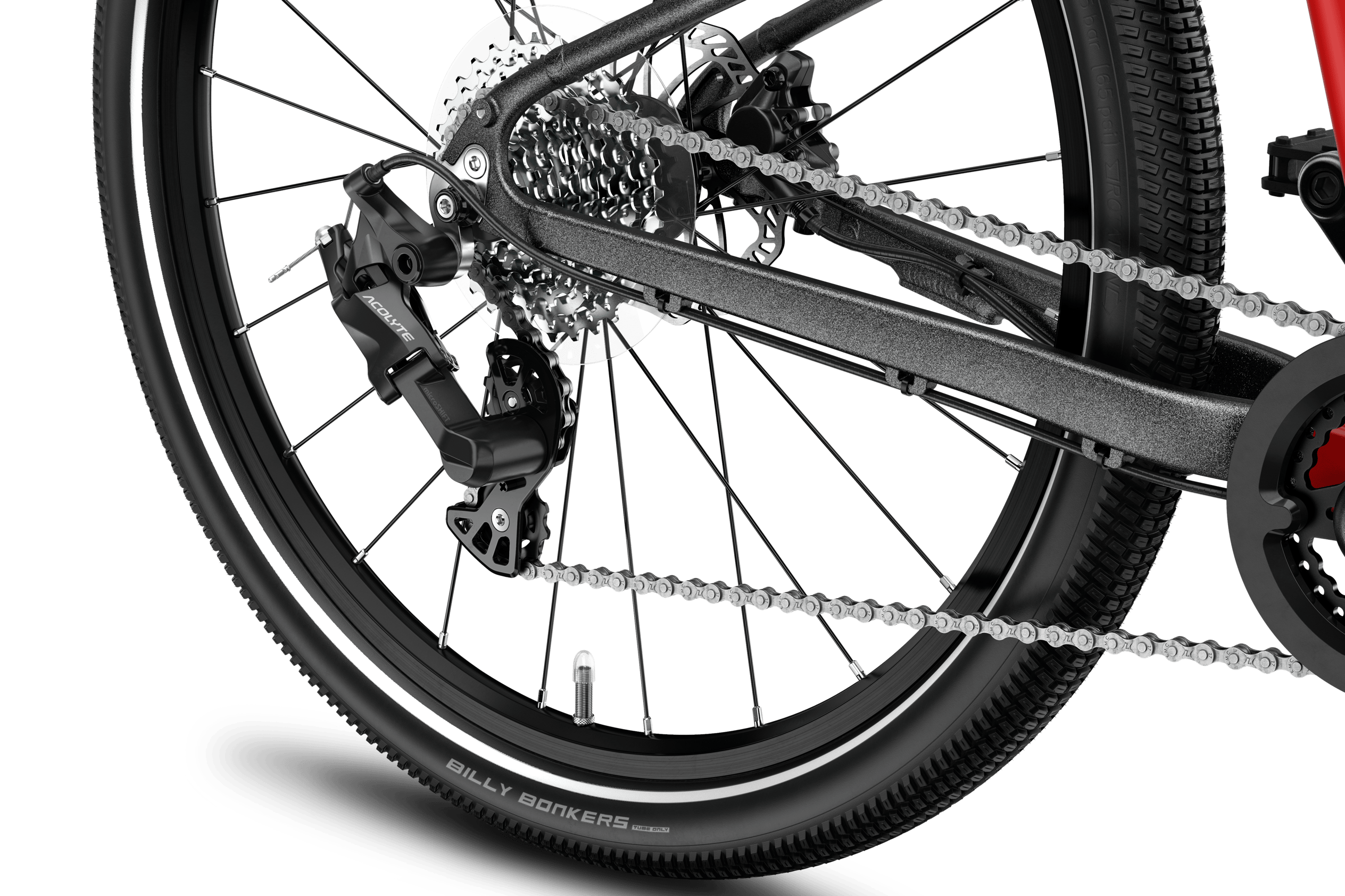

Gears
- 8 gears
- microSHIFT Acolyte RD-M5185S rear derailleur
- microSHIFT Acolyte trigger shifter
Fork
- Lightweight aluminum unicrown fork
- 1″ steerer tube
- Generous trail angle for easy, well-balanced handling

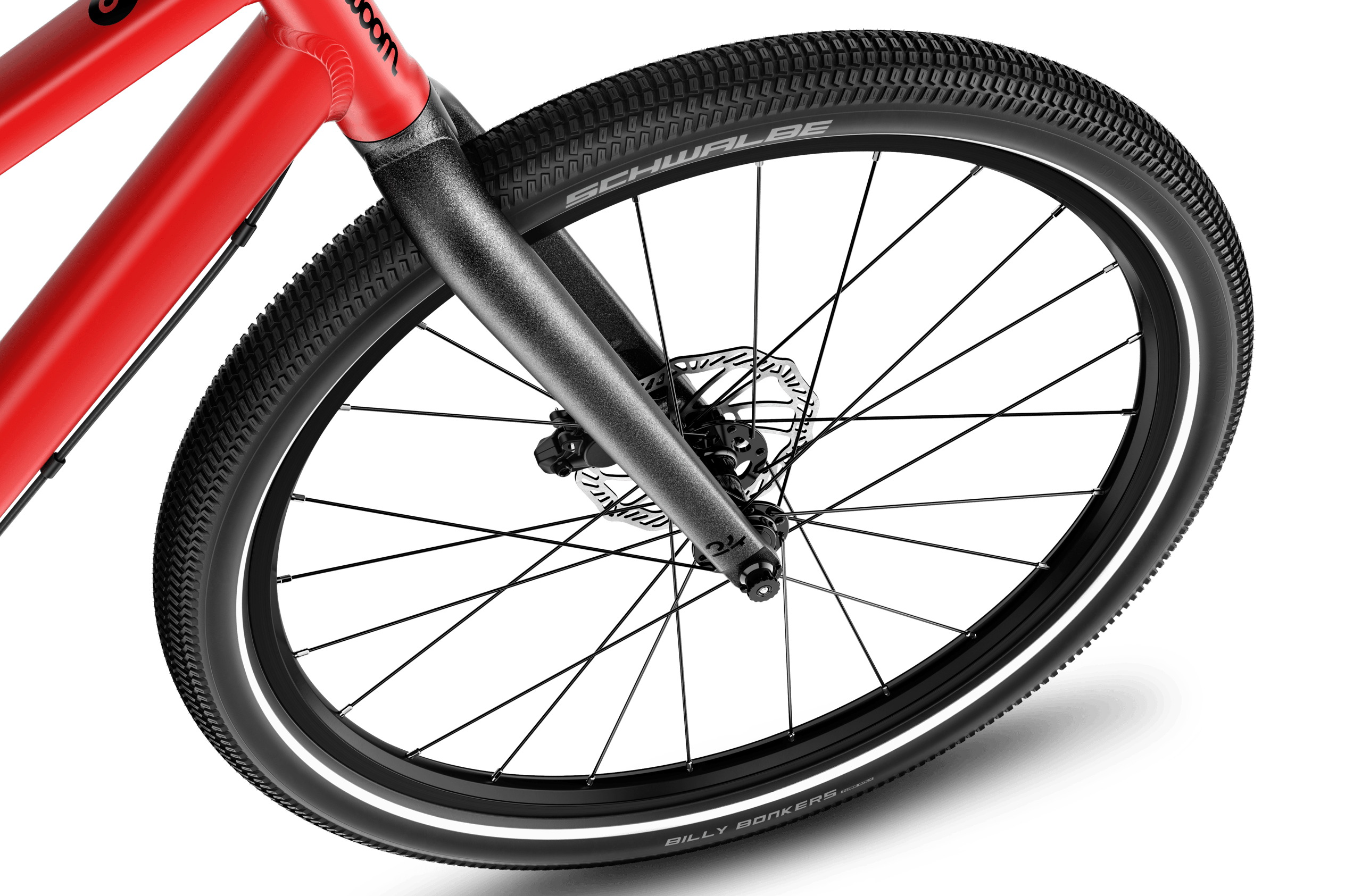

Wheels
- Ultralight aluminum rims
- Aluminum hubs with sealed bearings and mount for woom click-on mudguards
- Quick-release axle on front wheel for easy removal/fitting
- Bolt-on rear wheel
- 24 lightweight, super strong stainless steel spokes, double-crossed spoking
Headset
- Fully integrated 1″ headset
- Sealed industrial-grade bearings
- Integrated Ahead plug
Tires
- 24 × 2" Billy Bonkers folding tires (Performance Line), Schwalbe
- Agile, grippy all-terrain tires with low rolling resistance
- Increased visibility in low-light conditions with reflective stripes on the sidewalls

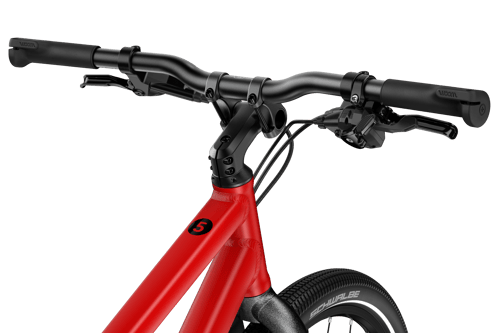

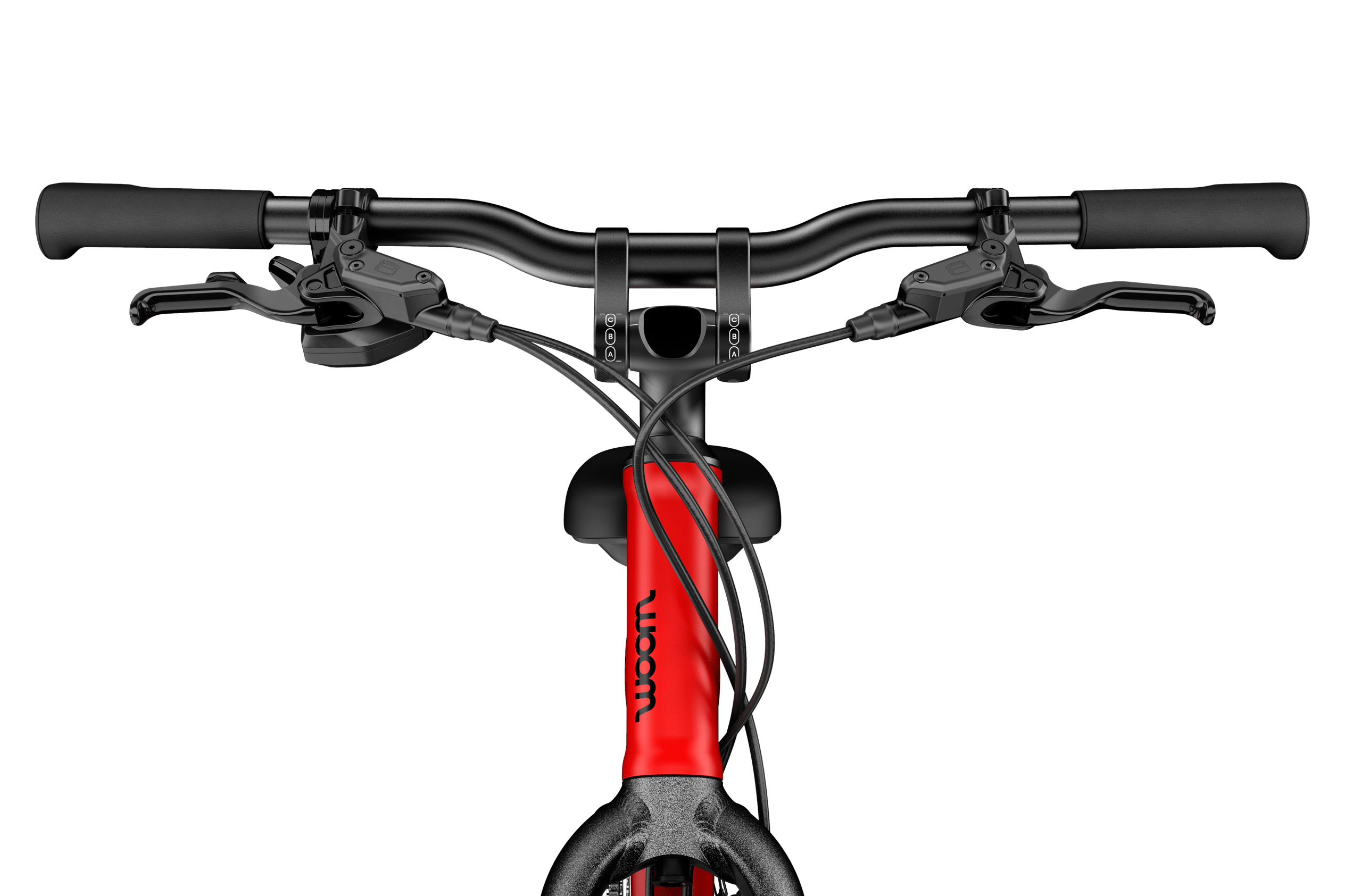

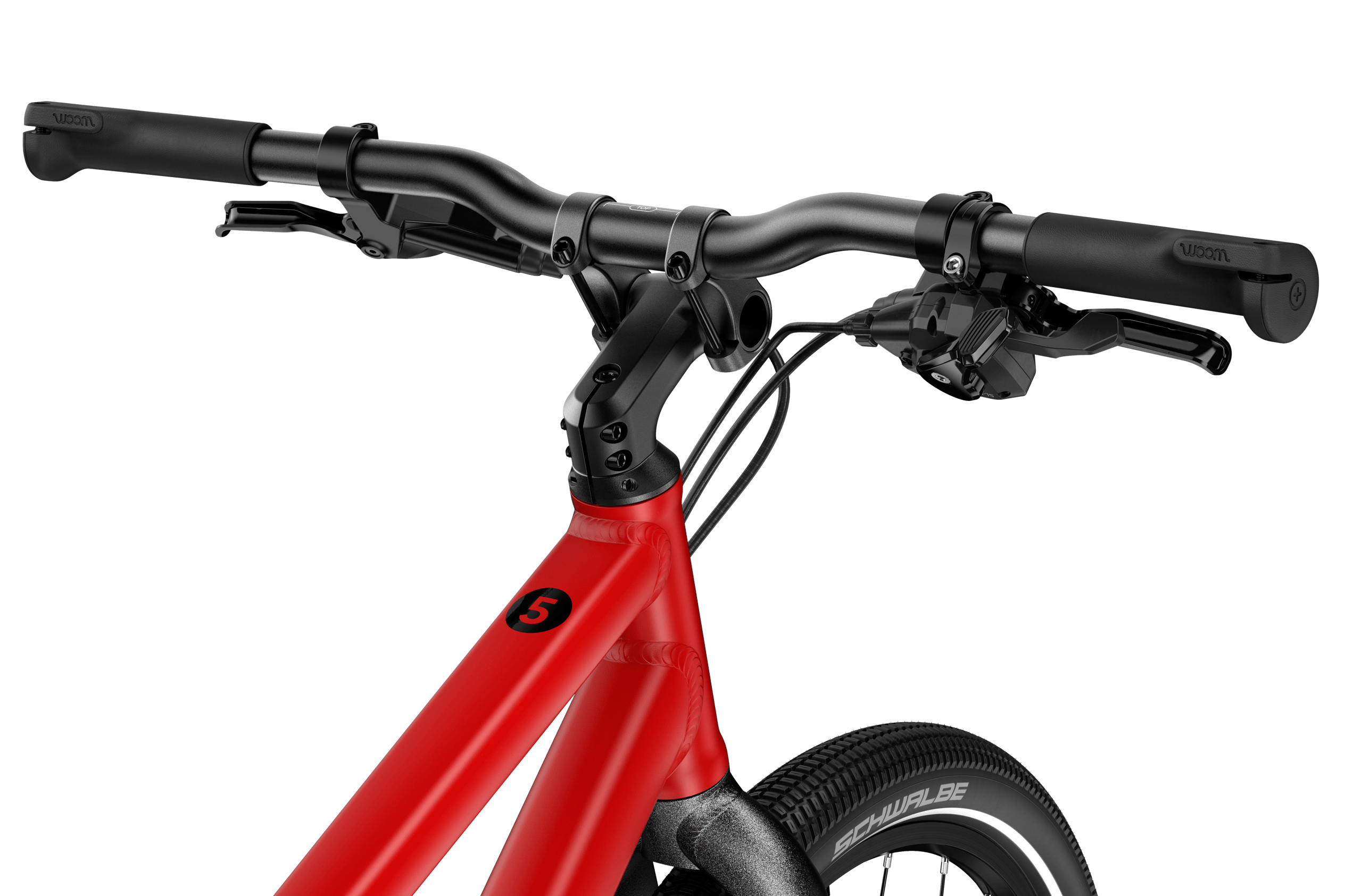

Stem
- Superlight stem made out of forged aluminum
- Adjustable in both height and reach to ensure an optimal bike fit as the rider grows
- Handlebars attached via two clamps and fixed with two 5 mm hexagon socket bolts
- Handy ABC marking makes it easier to adjust the handlebars in relation to the saddle height
Saddle
- Super comfy
- Ergonomic design, specific for each frame size/age
- Developed in collaboration with Selle Royal

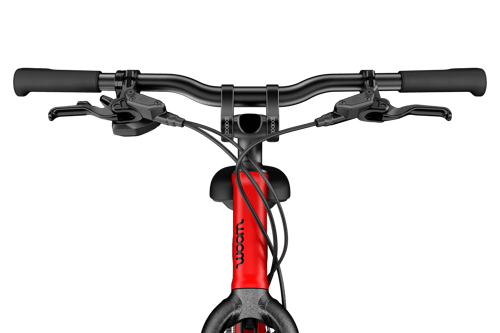

Handlebars
- Wide, lightweight aluminum bars with an ergonomic design and child-specific tapered ends to suit smaller hands
- Sandblasted and anodized in black
- Width: 580 mm
Seatpost
- Anodized aluminum seatpost with visible minimum insertion mark
- Handy ABC marking makes it easier to adjust saddle height in relation to the bars/stem
Grips
- Ergonomic design
- Slim, child-specific diameter
- Targeted comfort zone prolongs the onset of fatigue on long rides
- Lock-on design for secure attachment to the handlebars

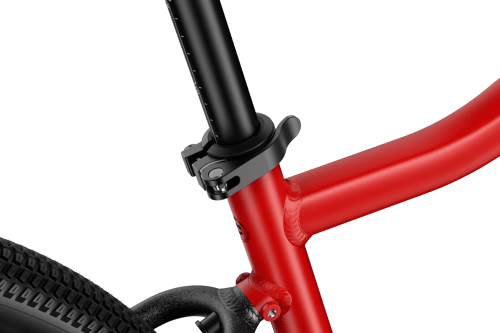

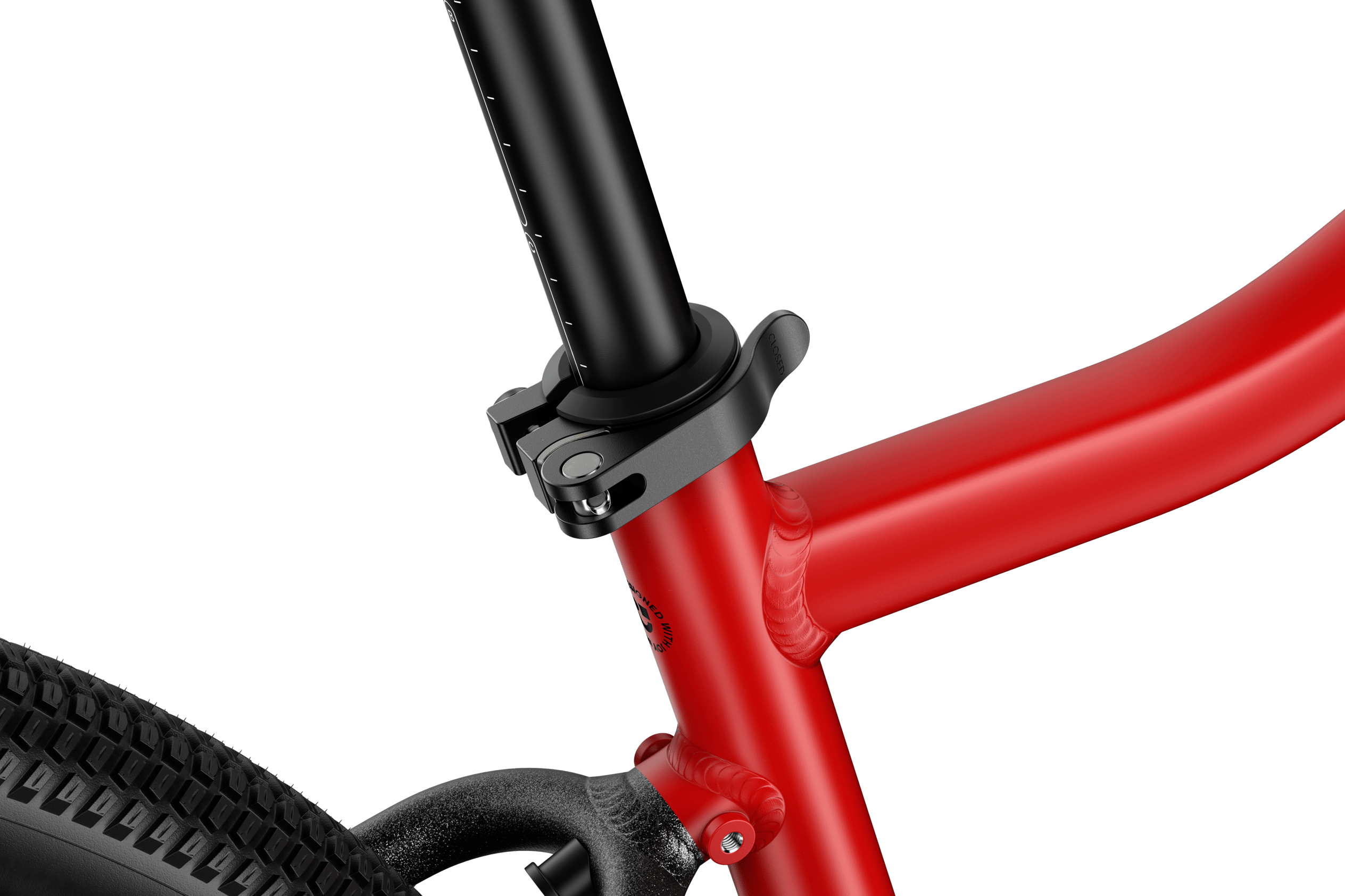

Seatpost clamp
- Made from aluminum
- Long quick-release lever that's easy to operate with minimal strength
- No risk of twisting
- Integrated shim prevents the seatpost from being scratched

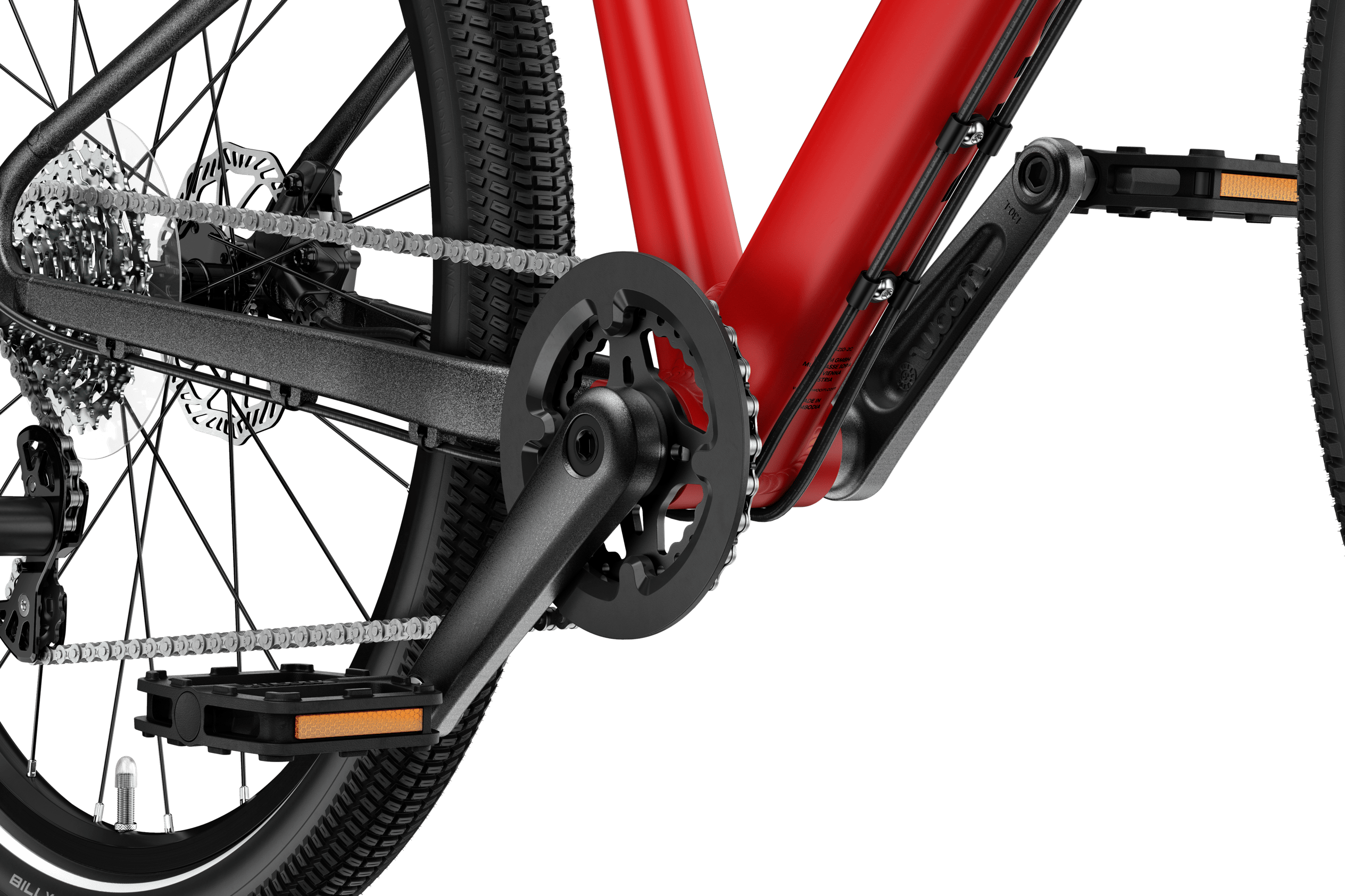

Drivetrain
- Lightweight, forged 130 mm aluminum cranks with narrow tread (Q-factor)
- Narrow-wide chainring with 28 teeth
- Cassette with 11–32 teeth
- Slim, plastic platform pedals
- Sealed cartridge bearings
Brakes
- Hydraulic flat mount disc brakes from Promax
- Rotor diameter front/back: 160/140 mm
- Adjustable, ergonomic brake levers, designed for children
Included tools
- 15 mm spanner for pedals
- 4 mm hex key for stem
Colors
woom red, magnetic blue, jungle green, neon coral
Weight
9 kg (without pedals)
Weight limit
Up to 80 kg
Shipping dimensions
127 x 23.5 x 64 cm
Get your woom EXPLORE ready to ride
In just a few quick steps, your woom EXPLORE will be ready for its first ride. Check out this video to find out exactly what to do.
Assembly instructions
Instructions for use
Find more information in our Service & Info area.
Designed for standout style
The woom EXPLORE is made to ride, explore, repeat with a standout style for young riders. The clean frame is specced with black components, black rims and finished in matte colors. For cool and active kids that want to find their stylish vibe on a bike, the woom EXPLORE is the one.

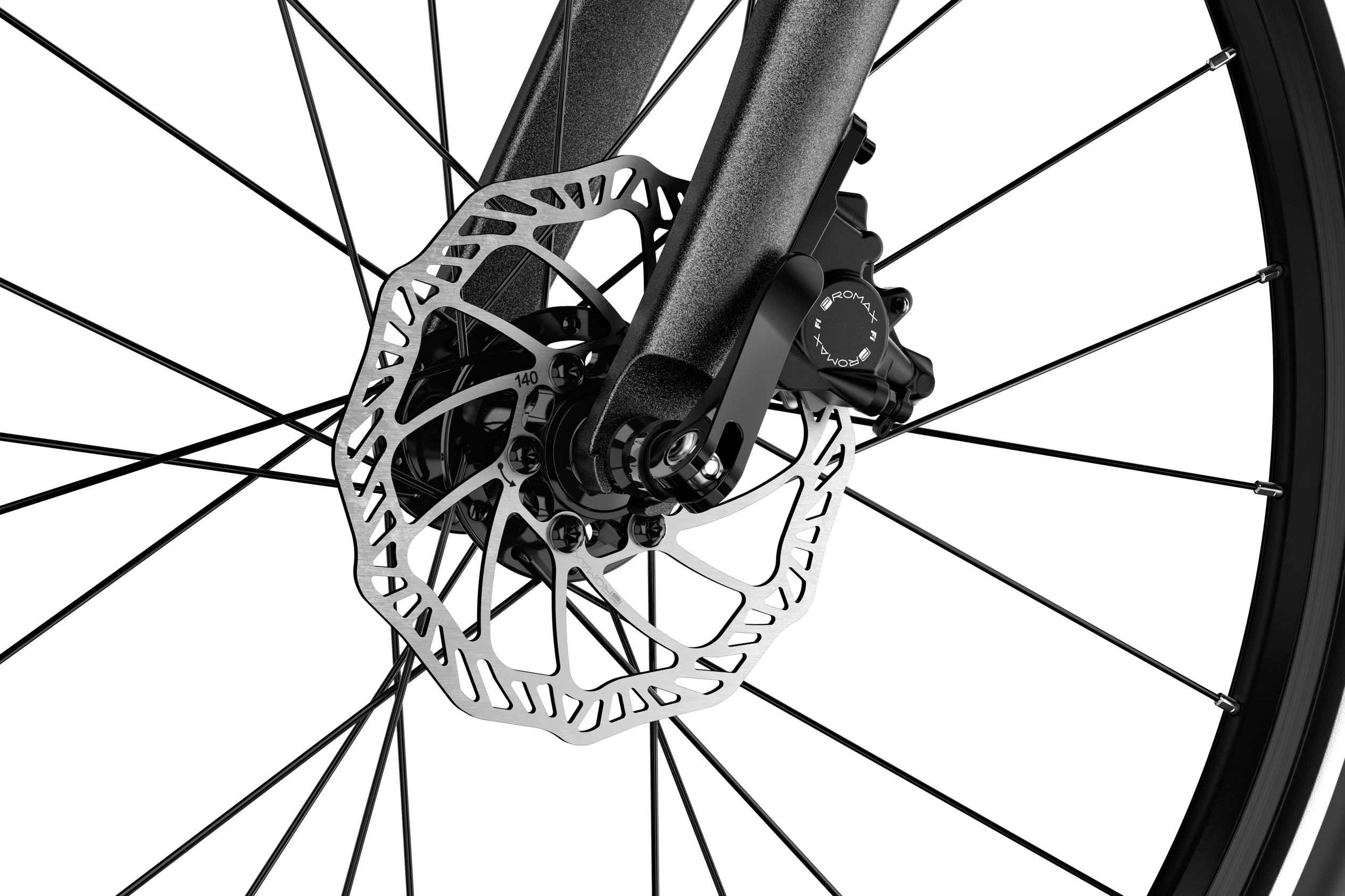

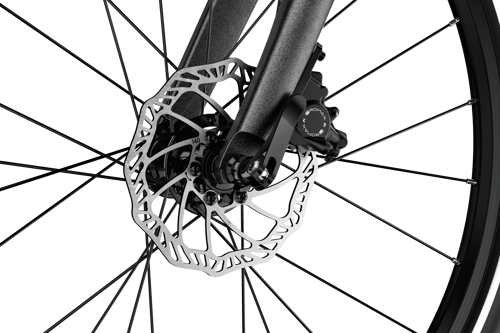

Powerful disc brakes
Promax's dependable and powerful disc brakes work with child-specific adjustable brake levers to safely bring the bike to a stop in all conditions without requiring serious force. This is peak braking performance for young riders.

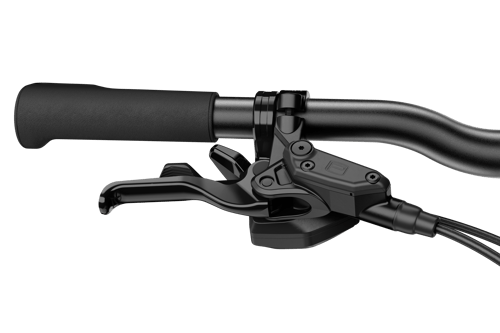

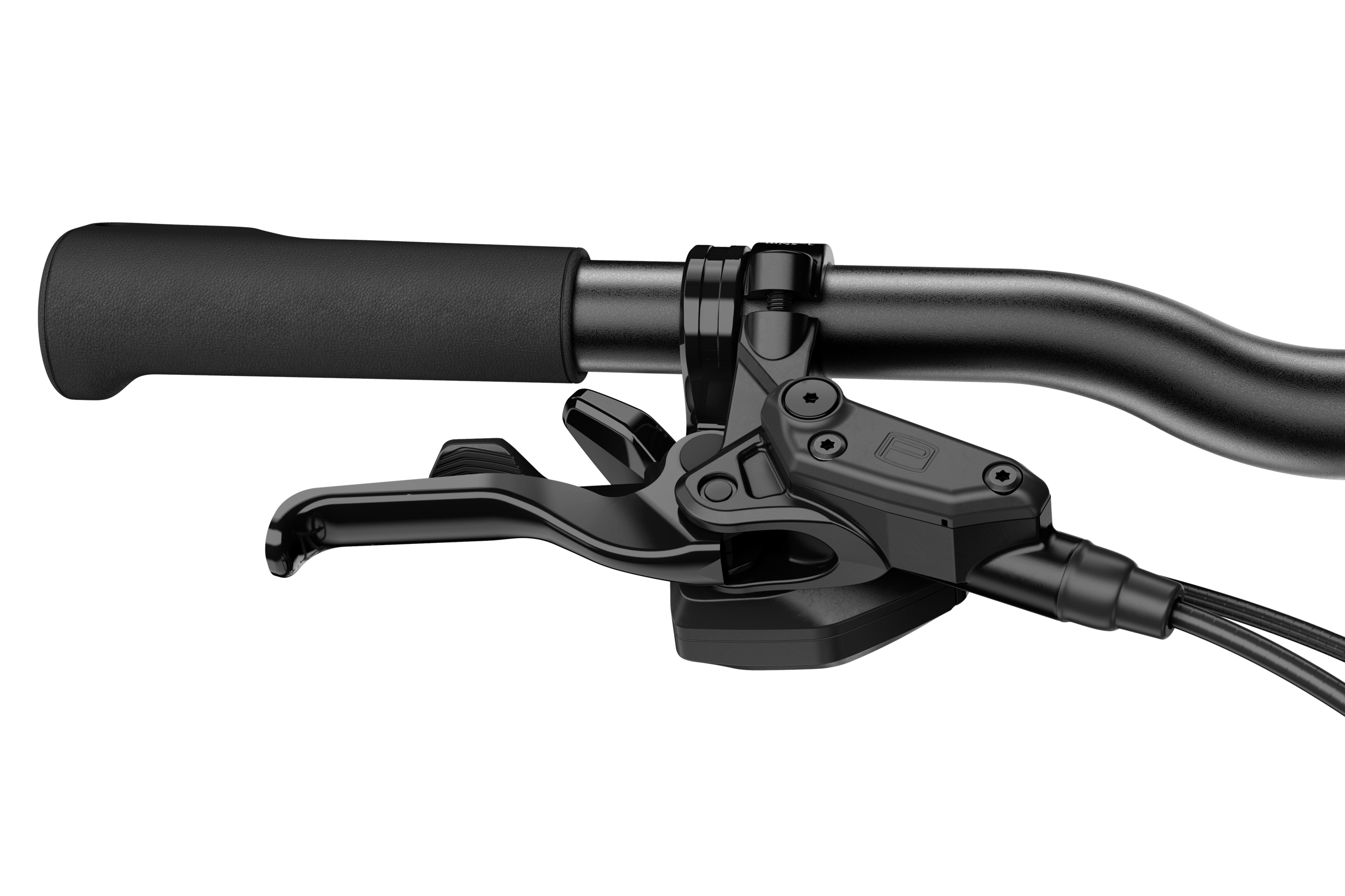

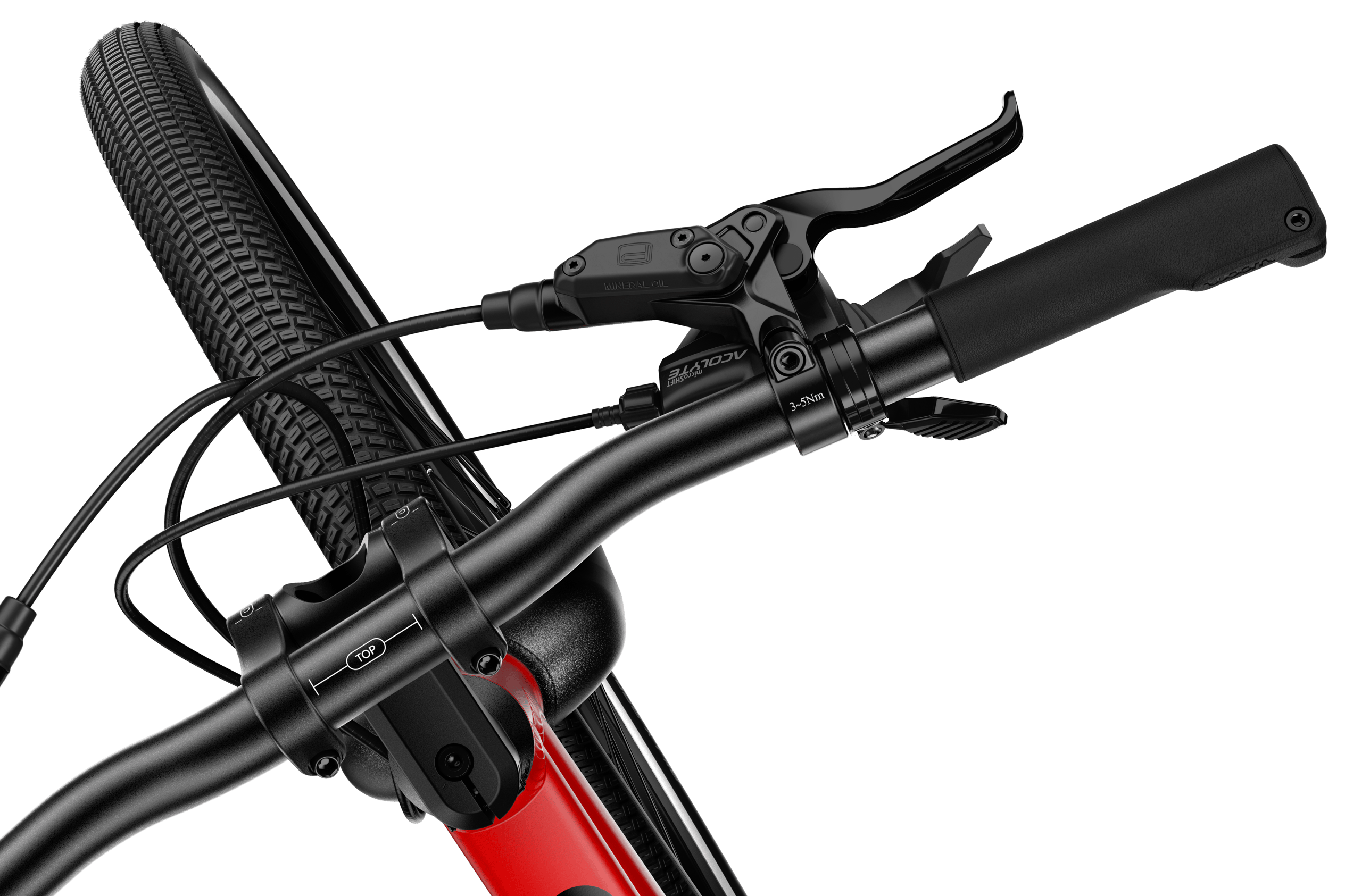

Easy-to-use trigger shifter
The high-quality trigger shifter from microSHIFT is rubber coated and child-friendly for ultra-precise, smooth shifting activated by index finger and thumb. This way, young riders can explore further with more fun and less fatigue.
Grippy all-terrain tires
Paved or unpaved, the Billy Bonkers tires from premium tire manufacturer Schwalbe feature our favorite tread pattern with maximum micro teeth for low rolling resistance and optimal grip on and off road.
The frame is your canvas
High-quality sticker sets encourage riders to put an individual spin on their bike, so they can create the woom EXPLORE of their dreams. SWEET!
Please note: The sticker sets are not included with the woom EXPLORE and must be purchased separately.
High-quality stickers
Weatherproof and UV-resistant, the woom EXPLORE stickers come in two styles: rebellious fruit in black/transparent or full-color outlandish animals. Simple to apply, straightforward to remove. Win-win!
Please note: The sticker sets are not included with the woom EXPLORE and must be purchased separately.
Child-specific frame
The frame geometry is carefully tailored for the age and size of the woom EXPLORE rider, creating a lightly stretched-out position for maximum comfort and an all-day smile.

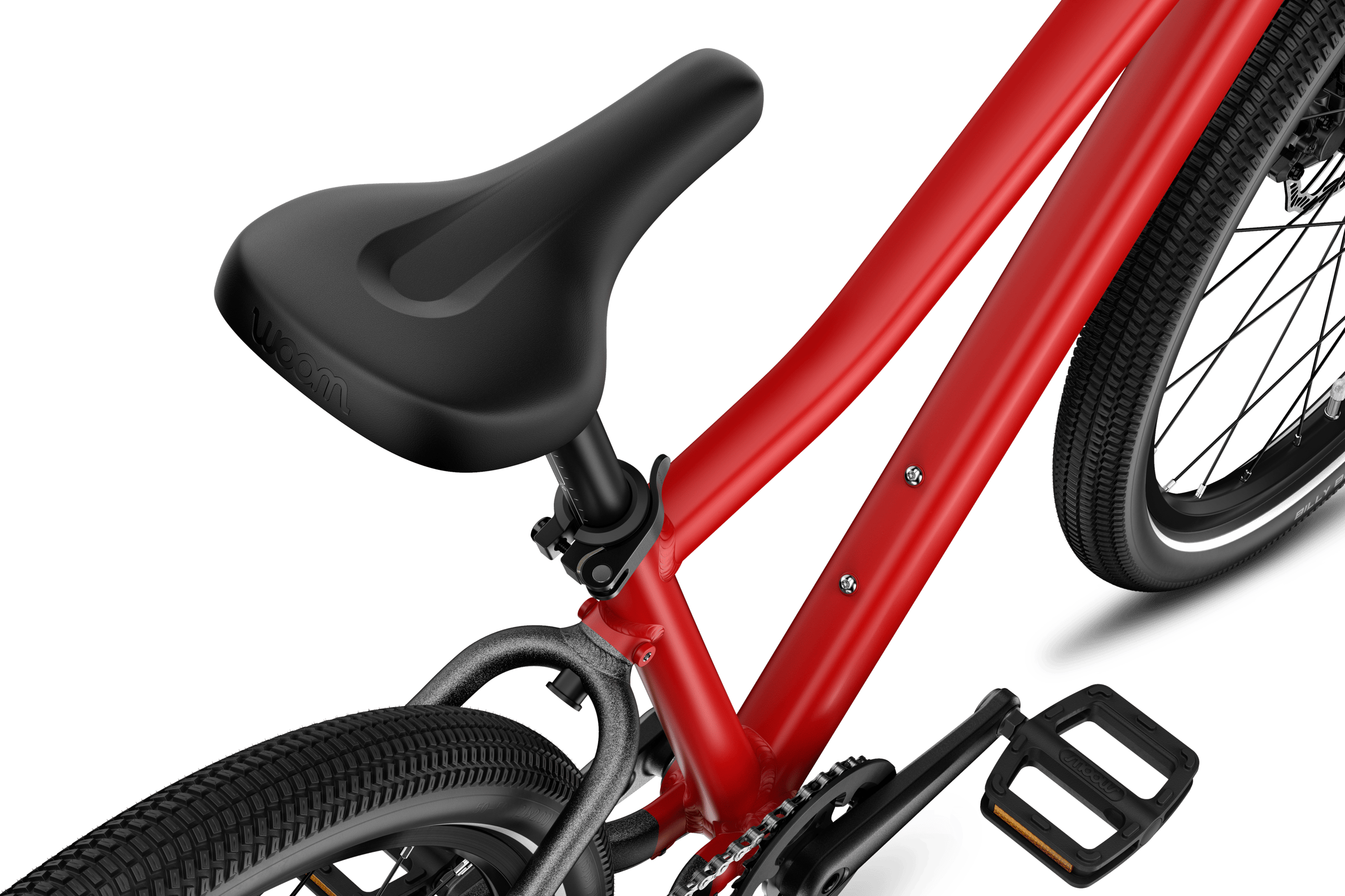

Ultra-comfy saddle
The water-resistant, hard-wearing saddle designed in collaboration with renowned saddle manufacturer Selle Royal is sized specifically for each frame to ensure game-changing comfort for all young riders.
Ergonomic grips
Narrow, child-specific grips engineered with targeted comfort zones give young riders the ultimate hand-to-bar contact for rides of any distance. Instead of achy wrists, think confident, capable and comfortable.

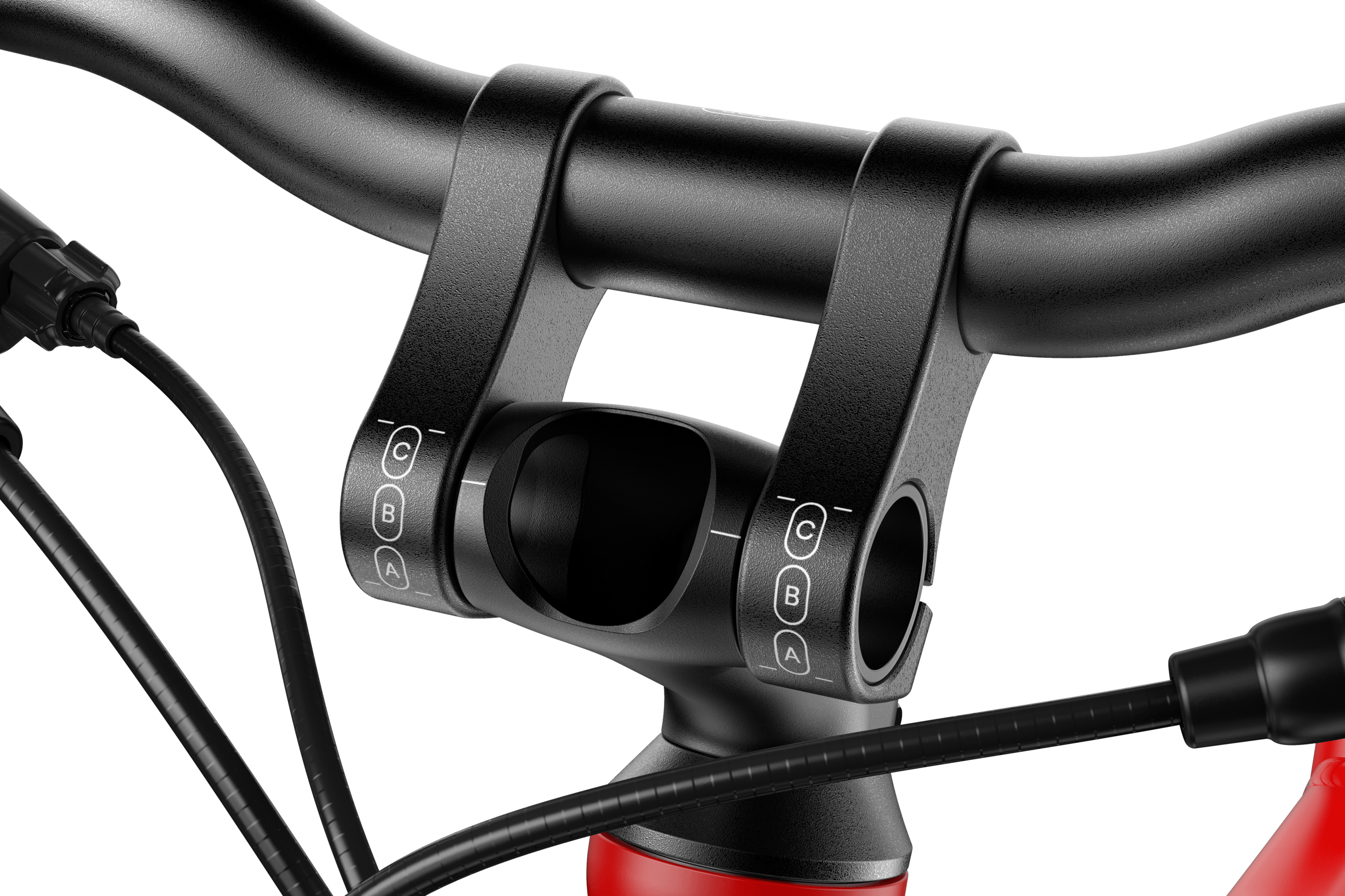

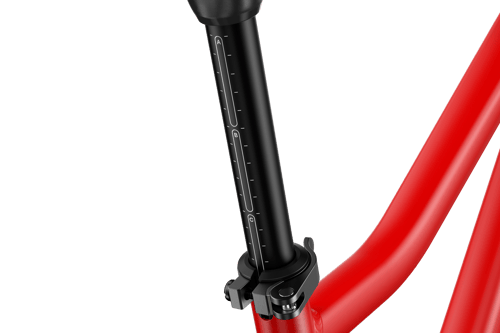

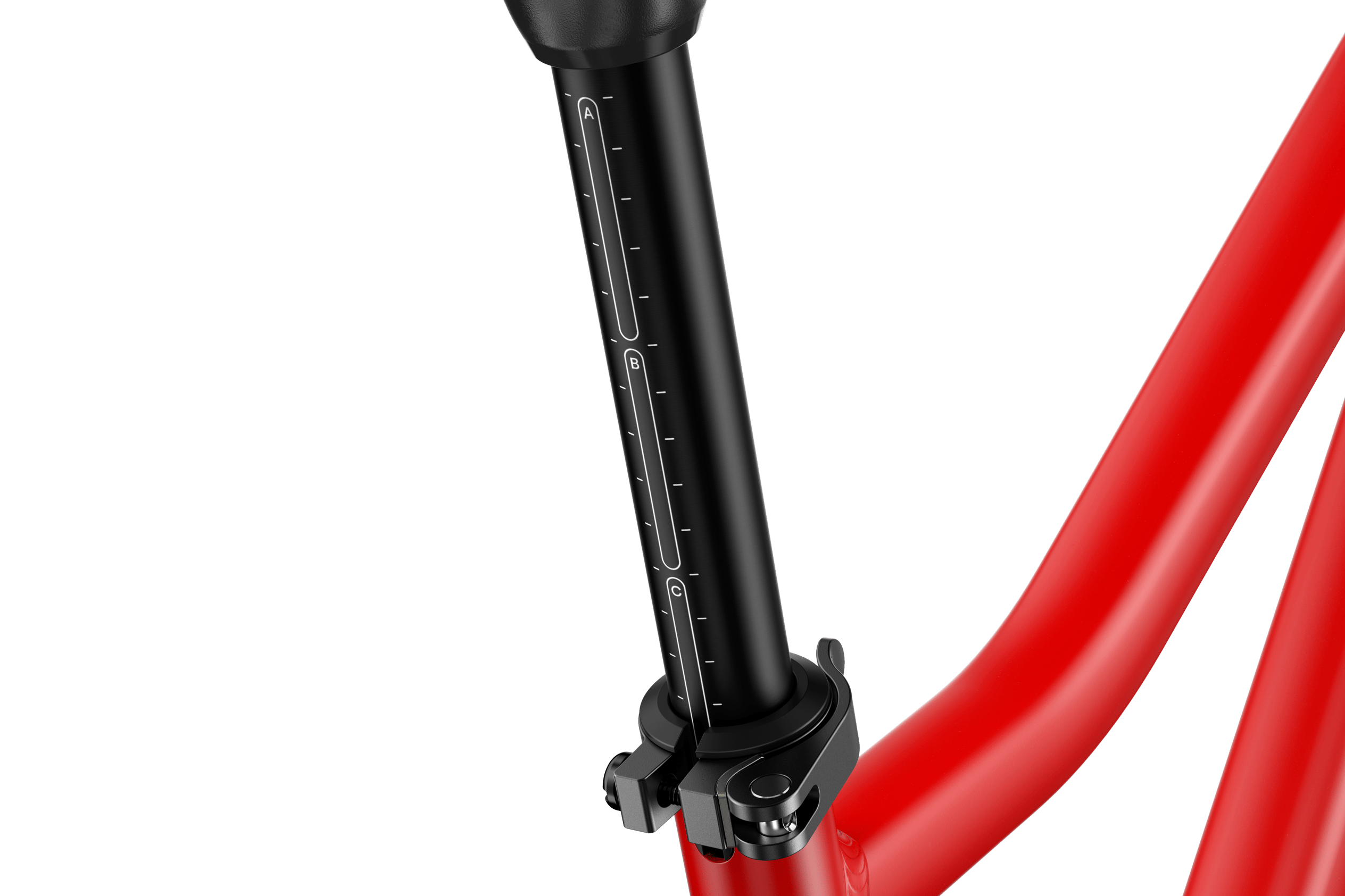

Bike fit guide: seatpost and stem
Look for ABC on the stem and seatpost. Use this handy guide when fitting the woom EXPLORE to your child. Begin by setting the saddle height at the best position for your child, then match the stem to the coordinating zone. Key to dialing in the perfect bike fit for your rider? Absolutely!
Our woom bikes don't come with any additional accessories. You can find useful extras, including kickstands and mudguards, in our online shop.
If your child plans on cycling on public roads and streets, their woom bike may need to meet certain standard requirements before it can be considered legal in your country of residence. In many countries, bikes must be equipped with a bike bell, front and rear lights, and wide-angle Z reflectors. As rules for cyclists and their equipment vary from country to country, find out about the regulations applicable to riding a woom bike in road traffic in your country or region, particularly regarding the use of lights, reflectors and other obligatory safety equipment.
The woom 10-year warranty*
Inspiring children to love riding their bikes is our mission at woom. That's why we guarantee the premium quality of every bike down to the last detail with innovative technology and long-lasting materials. In fact, we're so confident in our quality promise that we're offering to extend our warranty on frames, rigid forks, handlebars, stems and cranks from the usual two years to a full ten years – for free.
We have full confidence in our bikes, which is why we offer a 10-year warranty on the aluminium frames, rigid forks, bars and stem once you've registered online.
WARRANTY TERMS AND CONDITIONS
woom offers a 10-year manufacturer's guarantee on aluminium frames, rigid forks, handlebars and stem.
The initial activation of the 10-year warranty requires customers to register on the woom website within nine weeks from the date of purchase of a new woom bike upon submission of proof of purchase.
Provided that the bike has been registered properly, claims under the warranty must always be made via an authorised woom dealer (ideally the dealer that originally sold the bike) or through direct contact with woom if the bike was purchased from the woom online shop. To make a claim directly, send us an e-mail at [email protected] with the frame number, proof of purchase, proof of service (only required for used bikes) and photos or videos clearly showing the defect.
If a claim is made under the warranty, woom may choose to repair or replace any faulty parts at its own discretion. If a part cannot be replaced because the type, size or colour is no longer available, woom can provide a part regarded as a next-generation part to satisfy the claim made under the warranty. If a part or product is no longer being made at all or if no suitable spare part is available, woom reserves the right to exclude the warranty claim woom is under no obligation to provide original spare parts. No further claims can be made except for items expressly covered by this warranty. The warranty does not cover compensation for direct or indirect consequential damage. The buyer must cover any costs incurred for labour and/or postage and packaging costs.
The warranty is not extended or renewed when a claim is made under the warranty.
The warranty applies only to private end consumers. The warranty does not apply to end consumers using the products for their work, e.g. at a nursery or playgroup.
The guarantee applies internationally and can be transferred since it is tied to the product and not a person.
Legal warranty rights remain unaffected.
What is covered by the warranty?
| Components/products | Warranty duration |
Material defects and production faults with the frame, rigid fork, handlebars, stem | Ten years from the date of purchase* |
E-mountain bike battery (woom UP) | Two years from the date of purchase |
KIDS' Helmet | Two years from the date of purchase |
What is not covered by the warranty?
- Damage caused by crashes or accidents
- Suspension forks or suspension elements
- Components susceptible to wear and tear like LEDs, dynamos, chains, tyres, rims, brake pads, grips, hubs, headset and bottom bracket bearings, and cranks
- Damage to the paintwork
- Damage caused by improper use, e.g. freestyling, stunts and any other overuse
- Damage due to lack of care
- Improper repairs performed by third parties who are not authorised woom dealers
- Bikes that have had their frame numbers changed, removed or made illegible
- Changes made to the original bike design and the addition of parts that are not approved for use with the bike
If you buy a woom product and are not 100% satisfied, or if you didn't order the right size, you have 30 days to send it back to us free of charge from within the EU for either a refund or an exchange.
This also applies to your new woom bike, even if your child has already ridden it.
We will cover the return shipping costs and either refund the full amount you originally paid or send you a new bike in the requested size.
Everything you need to know about our cancellation policy can be found here.
