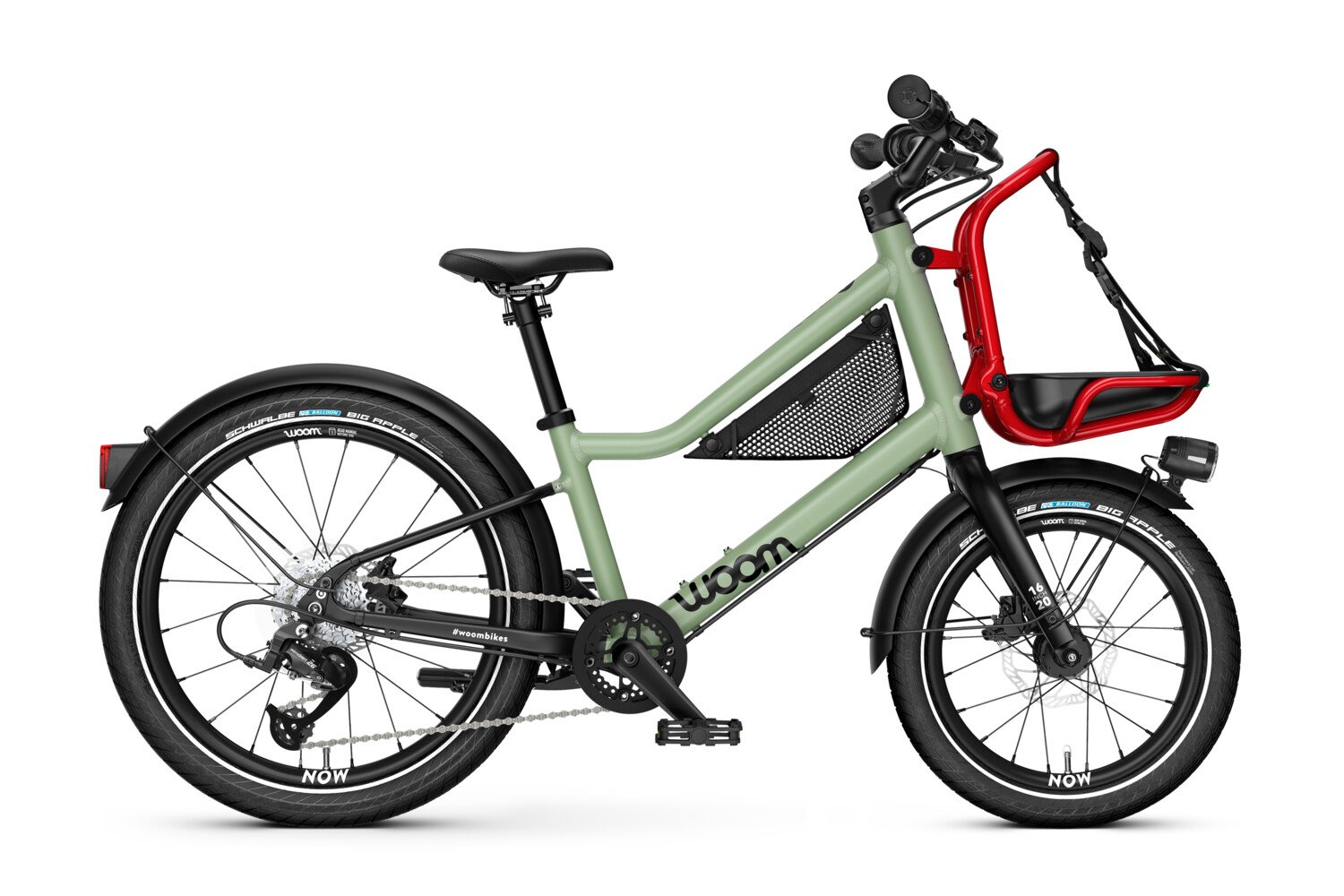

woom NOW 4
The fully equipped urban lifestyle bike with a front rack and innovative frame geometry (16 inch front wheel, 20 inch rear wheel) provides kids aged 6 and up with a stress-free and secure way of carrying their school bag.
The woom NOW is made for the school run
The school run is that bit safer when your child is riding the fully equipped woom NOW. They can pop their heavy school bag on the front rack rather than carrying it on their poor back. With the rack fixed at a low point on the frame – and not on the handlebars – the cargo stays steady and your child can stay in control of their bike the whole time. The wide balloon tires make the cycling experience enjoyable even when your child is riding on uneven surfaces. And the upright position gives them a good view of the road ahead.
Frame
- Frame material: lightweight, high-quality 6061 aluminum with butted tubes
- Wheel size: 16″ front, 20″ rear
- Agile handling: The low center of gravity created by the smaller front wheel and the upright riding position ensure great balance, stable and confident handling, good vision on the road, and a fun ride (even when loaded with a heavy school bag or similar).
Rack
- Specially developed, frame-mounted aluminum front rack engineered for stable handling, even when heavily loaded
- Integrated strap with easy-to-use clasp
- Maximum steering clearance thanks to the special bracket that pushes any tall luggage forwards
- Removable soft plastic inlay keeps loose straps away from the wheel
- Lower section that can be folded up
- Mounts for two accessories (one on either side), e.g. bottle cage or folding bike lock
- Maximum load 10 kg
- Dimensions: depth 203 mm x width 274 mm x height 291 mm (Not to be understood as maximum permissible laden weight. When loaded correctly, these figures can be exceeded – especially in terms of height, providing the rider has checked they have sufficient steering clearance before riding.)
Equipped for the urban environment
- Bar-mounted twist-grip bike bell lets you keep your hand safely on the bars
- Non-removable, powerful LED lights (white front, red rear) powered by premium Shutter Precision SD-8 hub dynamo
- Integrated reflectors in both front and rear lights with excellent reflectivity values
- Wide, durable mudguards with hard-wearing stainless steel stays for dependable protection against dirt and road spray
- Anti-slip plastic platform pedals with integrated yellow reflectors
- Robust, mid-mounted, easy-to-use aluminum kickstand
Gears
- 8 speeds
- microSHIFT DS85-8 twist shifter
- microSHIFT M26S rear derailleur
Fork
- Lightweight aluminum unicrown fork
- 1 1/8″ steerer tube
- Optimized trail angle for agile handling with a heavy load
- Flat mount for disc brake
Wheels
- Lightweight aluminum rims
- Front: Shutter Precision SD-8 hub dynamo, bolt-on skewer to prevent theft
- Rear: aluminum hub with sealed industrial-grade bearings
- 20 stainless steel spokes on the front and rear wheel, double-crossed spoking
Headset
- Integrated 1 1/8″ headset
- Sealed industrial-grade bearings
- Integrated Ahead plug
Tires
- Schwalbe Big Apple balloon tires with RaceGuard puncture protection
- 16″ x 2″ wire bead tire at the front/20″ x 2.15″ folding tire at the rear
- Premium, extra-wide tires with natural cushioning due to the large volume air cushion
- Car-type valves allow the tires to be pumped up at petrol stations (where permitted)
- Reflective stripes on the sides of the tires for optimal visibility even in low-light conditions
Stem
- Superlight stem made out of forged aluminum
- 40 mm/+15°
- The recessed clamp bolts and the sleek, rounded design make the stem extremely knee-friendly
- Two hexagon socket bolts attaching handlebars to stem
- With star nut and locking bolt
Saddle
- Ultra-comfy
- Ergonomically shaped for kids
- No sponge effect
- Anti-abrasion material on the sides
Handlebars
- Wide, ergonomic and lightweight aluminum bars with 15° backsweep for control and a comfy, natural-feeling arm position
- Sandblasted and anodized in black
- Width: 580 mm
- Rise: 35 mm
Seatpost
- Anodized aluminum seatpost with insertion marks that indicate the minimum insertion depth and current saddle position
Grips
- woom Ergogrips with a small, child-friendly diameter
- Ergonomically shaped
- Handlebar ends with extra-large diameter for greater protection
- Lock-on design for secure attachment to the handlebar
Seatpost clamp
- Aluminum bolt-on seatpost clamp to stop the saddle being stolen
- No risk of turning and/or twisting
Drivetrain
- Lightweight, forged 110 mm aluminum cranks with narrow tread (Q-factor)
- Narrow-wide chainring with 28 teeth
- Cassette with 11–28 teeth
- Narrow plastic platform pedals with integrated yellow reflectors
- Sealed cartridge bearings
Brakes
- Hydraulic flat mount disc brakes from Promax
- Rotor diameter front/back: 140/140 mm
- Ergonomic brake lever designed for children's hands
- Rear disc brakes well protected within the frame to prevent unwitting damage from knocks and bumps when on a busy bike stand or leaning against objects
Included tools
- Hex keys (3 mm, 4 mm, 5 mm) for stem, seatpost, wheels etc.
- 15 mm spanner for pedals
Colors
- moss green & formula red
- ice blue & carbon black
Weight
- 10.5 kg (without pedals)
Weight limit
- 100 kg (maximum combined weight of bicycle, rider and cargo)
Shipping dimensions
- 125 x 64 x 25 cm
The woom NOW in detail
In this video, you'll find out what makes the woom NOW so special, how the individual features work, and everything else you need to know about the woom NOW.
Find more information in our Service & Info area.
Innovative frame design
The clever frame design teams with the front rack and smaller front wheel to keep the weight of your child's cargo down low, which means confident handling while cruising. The ultra-comfy saddle and the wide, wrist-friendly handlebars add comfort to the ride. Your child will be sitting in an upright position, giving them a good view of whatever else is happening on the road around them.

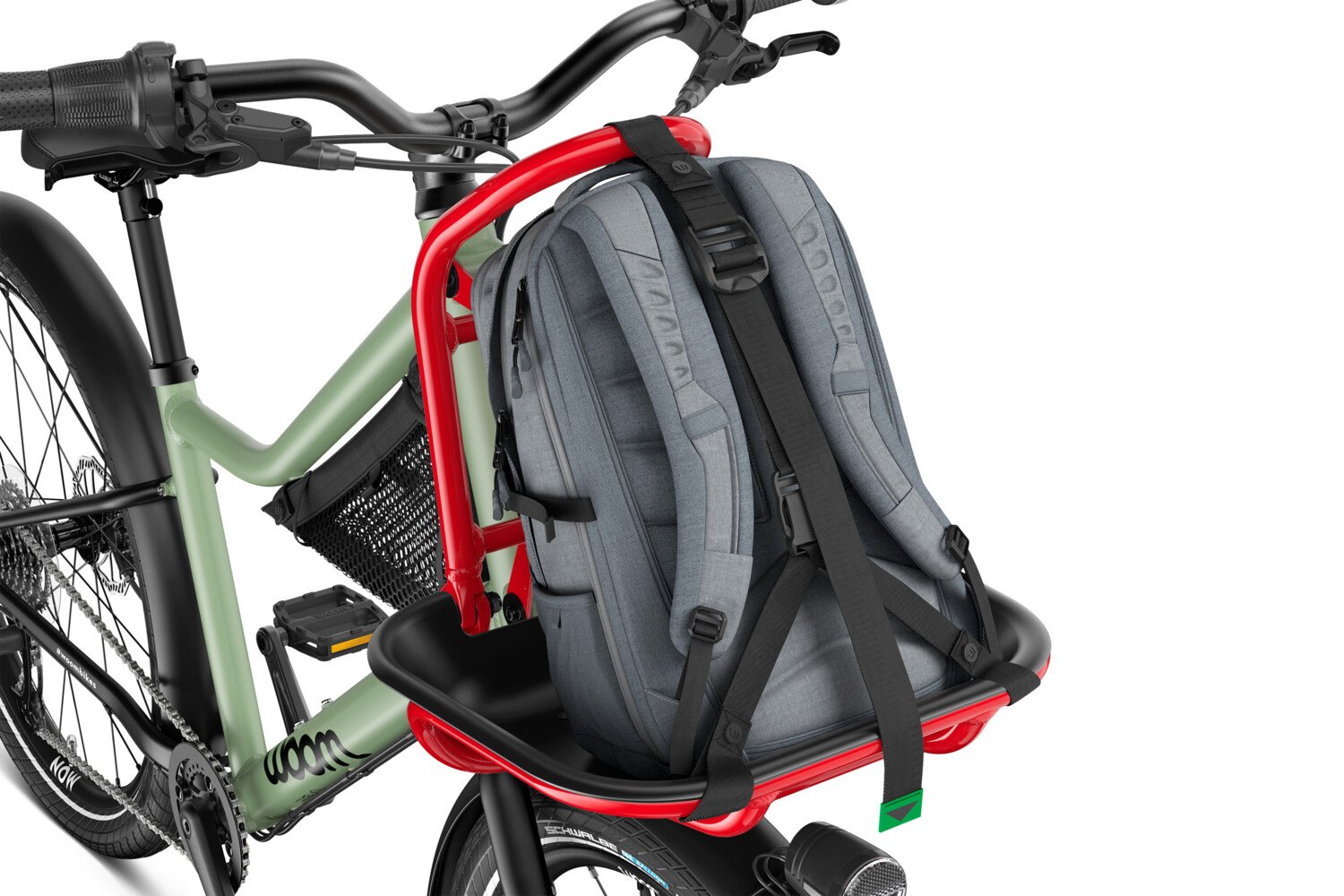

Stress-free storage
School bag, sports kit or skateboard – the front rack with integrated straps is big on style and high on functionality, keeping your child's cargo secure on their journey. Up front, it handles your child's everyday carry like a pro with masses more control than a rear rack ever could. It makes cycling with cargo safer and more enjoyable for your child.

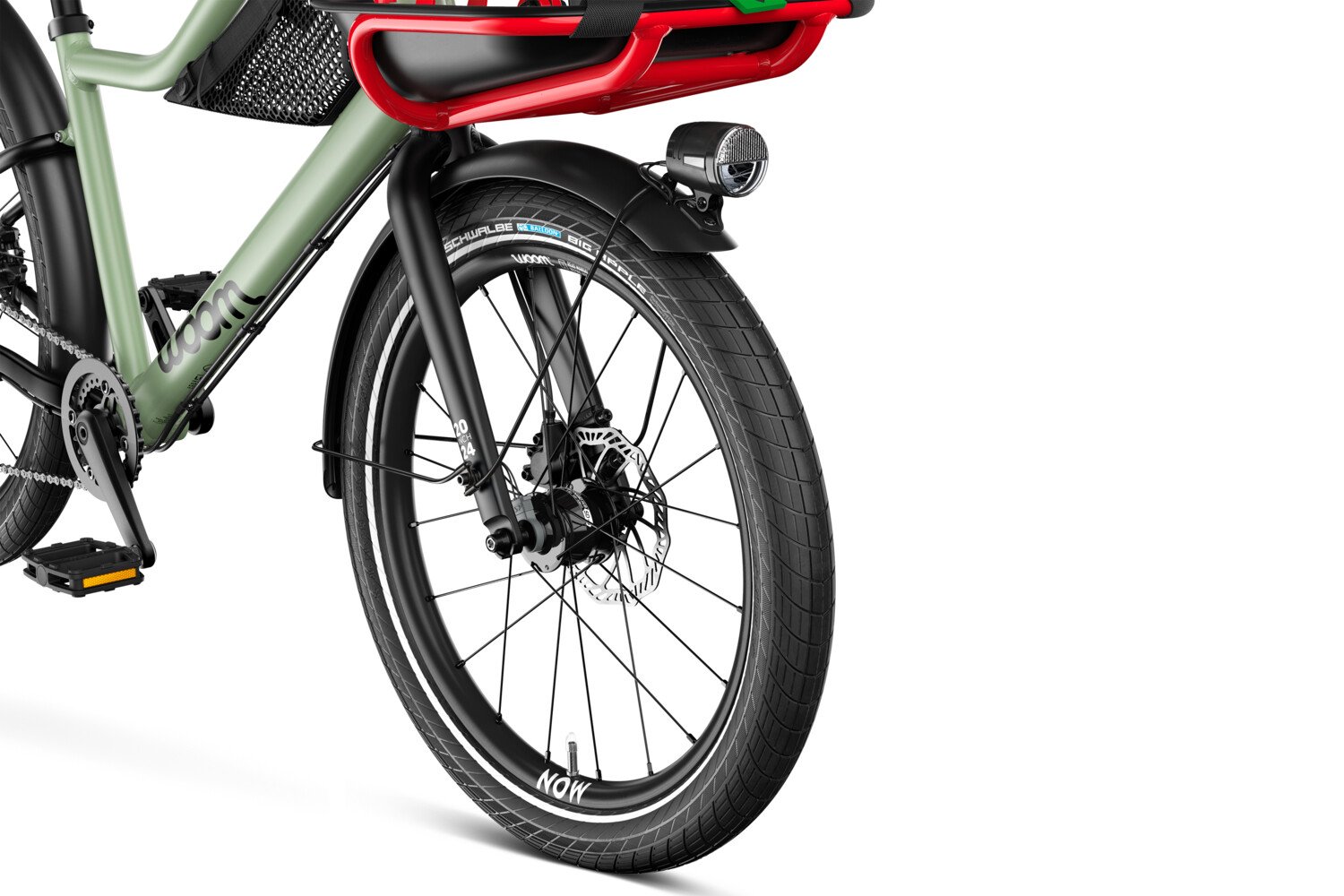

Wide balloon tires with natural cushioning
The balloon tires have an air cushion providing natural cushioning, which improves the cycling experience for your child – even when they're riding over cobblestones and other uneven surfaces. The built-in puncture protection belt helps your child avoid punctures, while the extreme width of the tires stops them getting stuck when your child is cruising over tramlines.

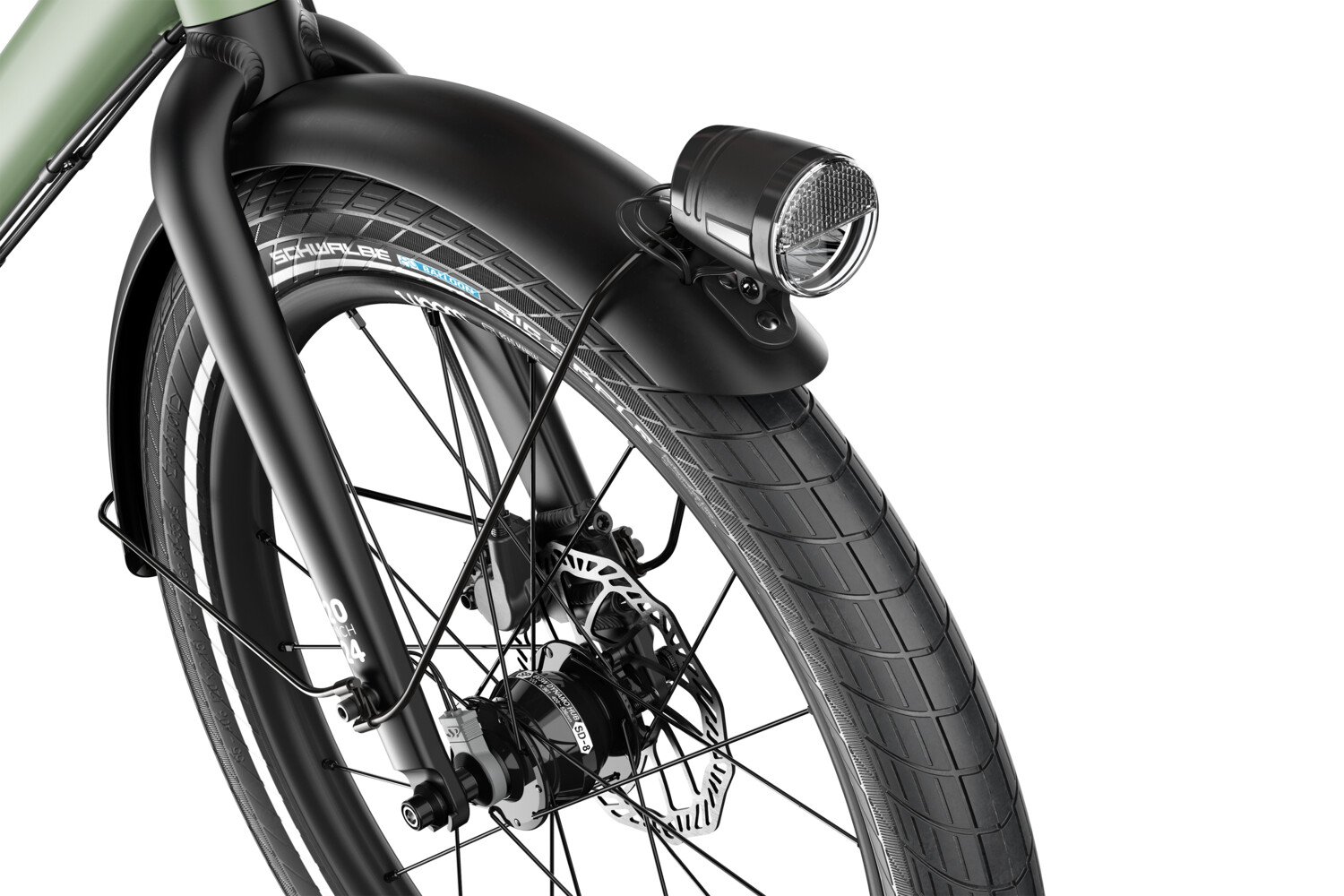

Built-in LED lights with hub dynamo
Worried about your child having to push their bike home through the dark because they forgot their lights? That's never a problem with the woom NOW! The non-removable, powerful LED lights can always be relied on to illuminate the route ahead for your child. What's more, there are reflectors built into both the front and rear lights. The lights are powered by the high-quality hub dynamo, so there's no need to worry about charging them up.
Integrated twist-grip bell
Subtle and stylish, this loud and functional twist-grip bell is hidden on the handlebars and is so easy to reach that your child literally doesn't have to lift a finger. Not just a picture of good design, this bell also means your child can be heard clearly in every situation. Mind your back!

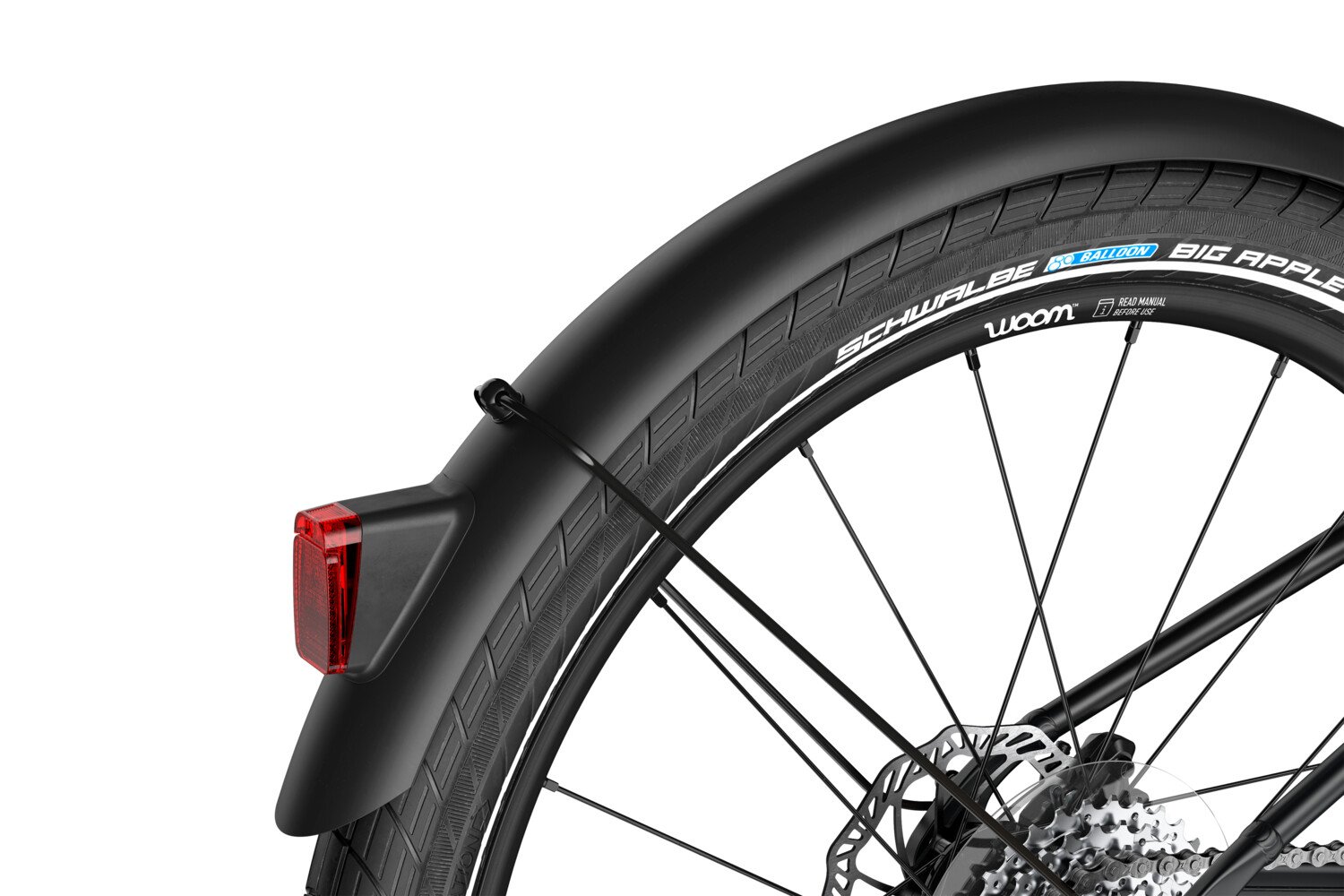

Durable, pre-fitted mudguards
The wide mudguards fitted onto the woom NOW have got your child covered in the wet, keeping them clean and dry. They're also super robust with strong stainless steel stays, so they won't get bent out of shape even when they're met with knocks and bumps on a busy bike stand.

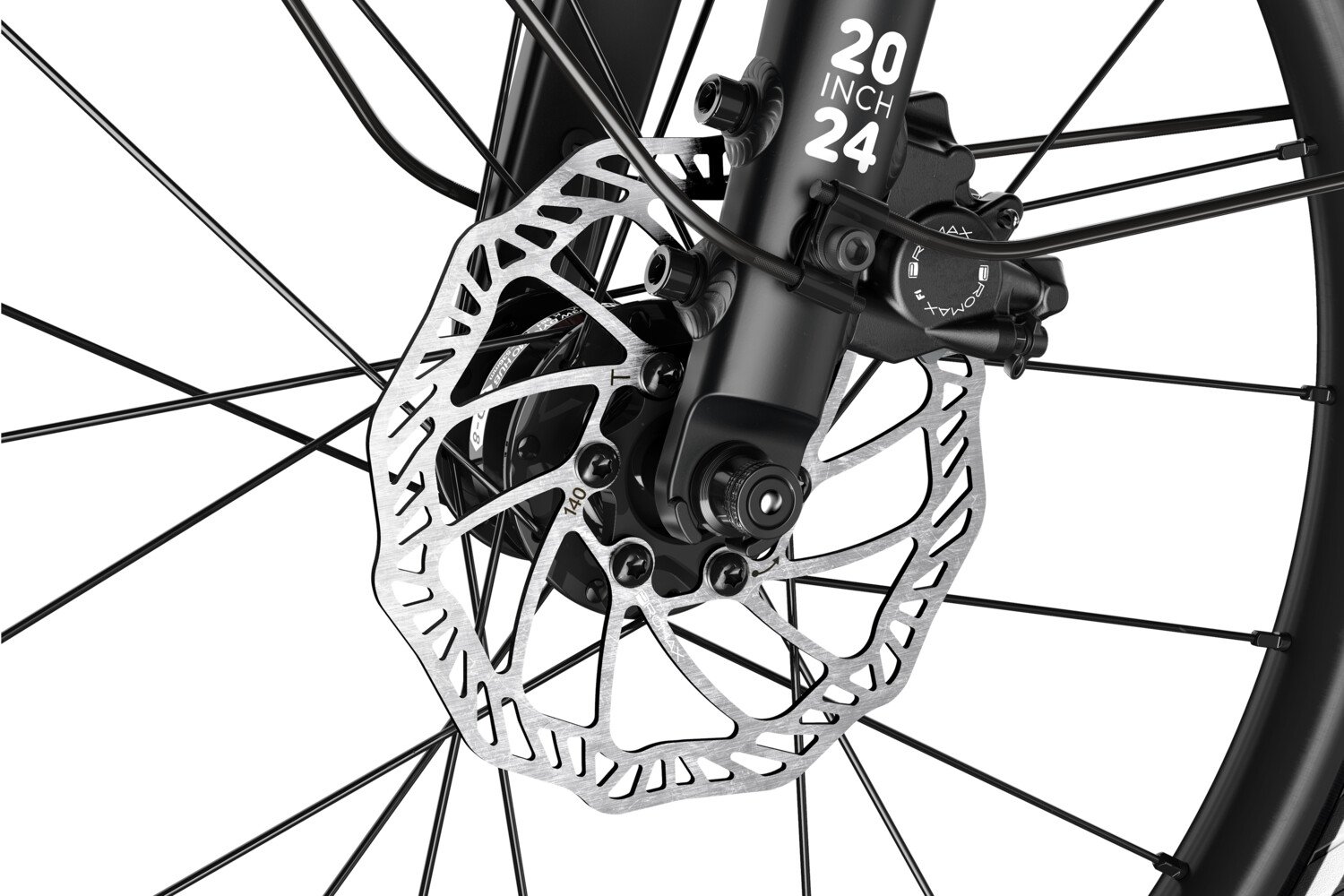

Reliable disc brakes
Your child is unstoppable. But their bicycle isn't. Mega powerful disc brakes are engineered to unleash superhuman stopping power without much effort, which keeps your child's braking nice and controlled, even on a wet day. Cycling in the city just got safer.

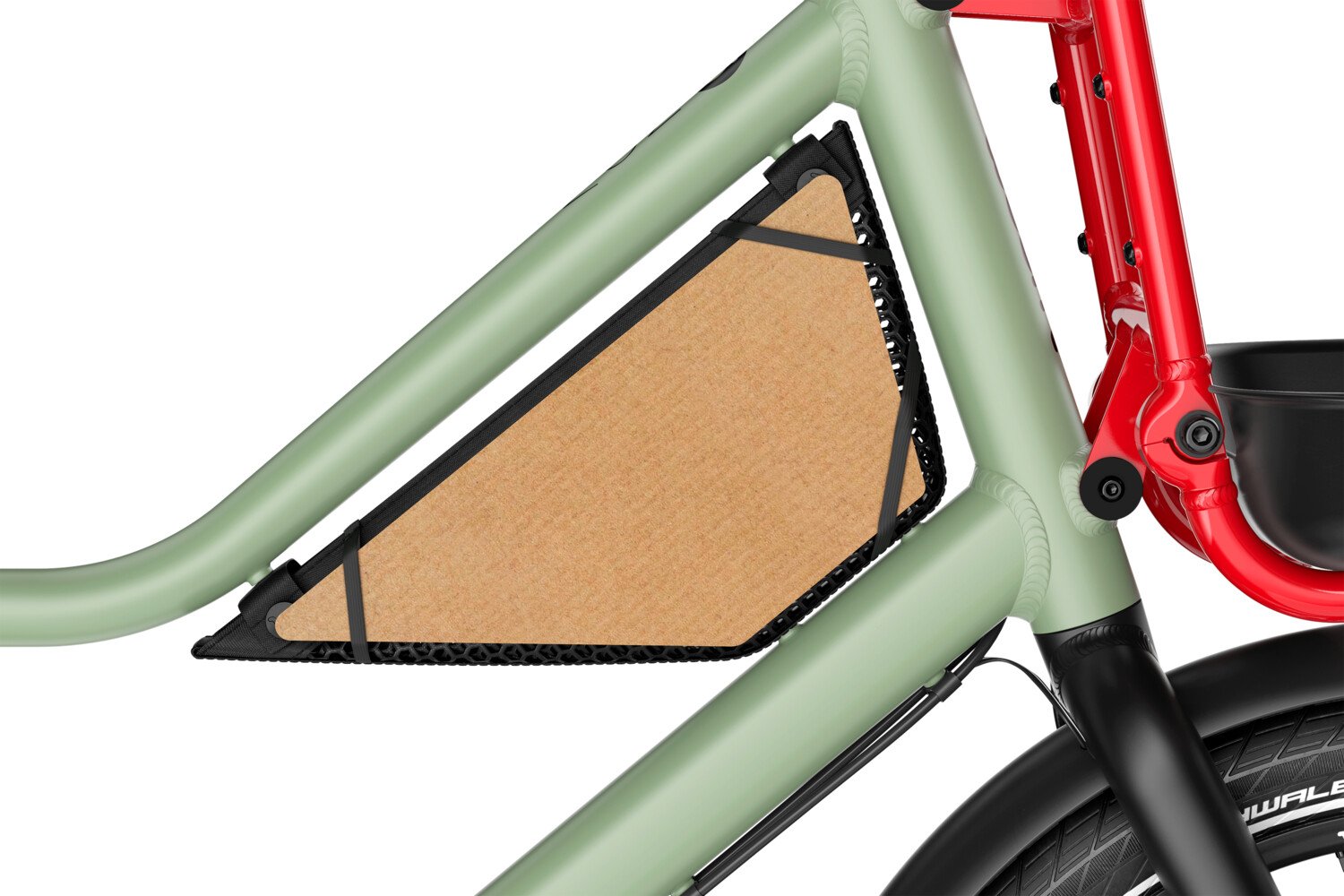

Customizable frame bag
Your child can pop all their little essentials like their money, keys and phone in the customizable bag on the woom NOW frame. There's even space for their bike lock, so they can keep it safe while they're on the move. Your child can make a statement by drawing their own works of art on the outside of the bag.
The woom 10-year warranty*
Inspiring children to love riding their bikes is our mission at woom. That's why we guarantee the premium quality of every bike down to the last detail with innovative technology and long-lasting materials. In fact, we're so confident in our quality promise that we're offering to extend our warranty on frames, rigid forks, handlebars, stems and cranks from the usual two years to a full ten years – for free.
We have full confidence in our bikes, which is why we offer a 10-year warranty on the aluminium frames, rigid forks, bars and stem once you've registered online.
WARRANTY TERMS AND CONDITIONS
woom offers a 10-year manufacturer's guarantee on aluminium frames, rigid forks, handlebars and stem.
The initial activation of the 10-year warranty requires customers to register on the woom website within nine weeks from the date of purchase of a new woom bike upon submission of proof of purchase.
Provided that the bike has been registered properly, claims under the warranty must always be made via an authorised woom dealer (ideally the dealer that originally sold the bike) or through direct contact with woom if the bike was purchased from the woom online shop. To make a claim directly, send us an e-mail at [email protected] with the frame number, proof of purchase, proof of service (only required for used bikes) and photos or videos clearly showing the defect.
If a claim is made under the warranty, woom may choose to repair or replace any faulty parts at its own discretion. If a part cannot be replaced because the type, size or colour is no longer available, woom can provide a part regarded as a next-generation part to satisfy the claim made under the warranty. If a part or product is no longer being made at all or if no suitable spare part is available, woom reserves the right to exclude the warranty claim woom is under no obligation to provide original spare parts. No further claims can be made except for items expressly covered by this warranty. The warranty does not cover compensation for direct or indirect consequential damage. The buyer must cover any costs incurred for labour and/or postage and packaging costs.
The warranty is not extended or renewed when a claim is made under the warranty.
The warranty applies only to private end consumers. The warranty does not apply to end consumers using the products for their work, e.g. at a nursery or playgroup.
The guarantee applies internationally and can be transferred since it is tied to the product and not a person.
Legal warranty rights remain unaffected.
What is covered by the warranty?
| Components/products | Warranty duration |
Material defects and production faults with the frame, rigid fork, handlebars, stem | Ten years from the date of purchase* |
E-mountain bike battery (woom UP) | Two years from the date of purchase |
KIDS' Helmet | Two years from the date of purchase |
What is not covered by the warranty?
- Damage caused by crashes or accidents
- Suspension forks or suspension elements
- Components susceptible to wear and tear like LEDs, dynamos, chains, tyres, rims, brake pads, grips, hubs, headset and bottom bracket bearings, and cranks
- Damage to the paintwork
- Damage caused by improper use, e.g. freestyling, stunts and any other overuse
- Damage due to lack of care
- Improper repairs performed by third parties who are not authorised woom dealers
- Bikes that have had their frame numbers changed, removed or made illegible
- Changes made to the original bike design and the addition of parts that are not approved for use with the bike
If you buy a woom product and are not 100% satisfied, or if you didn't order the right size, you have 30 days to send it back to us free of charge from within the EU for either a refund or an exchange.
This also applies to your new woom bike, even if your child has already ridden it.
We will cover the return shipping costs and either refund the full amount you originally paid or send you a new bike in the requested size.
Everything you need to know about our cancellation policy can be found here.
