woom OFF 4
An ultralight and durable 20" mountain bike (second generation, 2023 model) with a carbon fork, 9 gears and disc brakes designed for children aged 6 years and over.
Minimal weight. Maximum fun.
The next-generation woom OFF 4 is an ultralight, super capable mountain bike for kids aged six and up, designed to introduce your child to a world of off-road adventure and help them take their bike skills up a gear. The ergonomic design, child-specific geometry and premium components provide total control and added safety.
Frame
- Frame material: lightweight, high-quality 6061 T6 aluminum with butted and hydroformed tubes
- 20″ wheels
- Confidence-inspiring handling: an easy-access low top tube, low center of gravity and long wheelbase provide good balance and make for a fun, safe ride
- Hard-wearing plastic chainstay protector to prevent scratches
Gears
- 9-speed gearing
- SRAM X5 trigger shifter
- SRAM X5 rear derailleur
Fork
- Lightweight woom carbon fork
- Multidirectional carbon fibers for high torsional stiffness
- 1 1/8″ – 1″ baby taper steerer tube
- 100 x 15 mm thru-axle
- Post mount for disc brake
Wheels
- Lightweight, tubeless-ready aluminum rims from Alexrims
- Size: 20″
- Aluminum hubs with sealed industrial bearings
- Thru-axles for maximum torsional strength (100 x 15 mm front / 135 x 12 mm rear)
- 20 spokes, double-crossed spoking
- Aluminum nipples
Headset
- Fully integrated 1 1/8″ – 1″ headset
- Sealed industrial-grade bearings
Tires
- 20 x 2.25" Schwalbe Rocket Ron
- ADDIX SPEED rubber compound and Tubeless Easy technology
- Tubeless-ready
- Presta valves
Stem
- Forged aluminum
- CNC-machined
- Handlebars attached via two clamps
- +/-15° flip-flop design to adjust handlebar height
- Length: 50 mm
Saddle
- MTB-specific saddle
- Trail-ready design
- Ergonomic and age-appropriate design to fit the rider's pelvis
- Side protection for leaning against walls
Handlebars
- Wide, lightweight aluminum bars with tapered ends
- Width: 570 mm
- Rise: 20 mm
Seatpost
- 27.2 x 250 mm
- Anodized aluminum seatpost with minimum insertion mark
Grips
- Child-friendly thanks to small diameter
- Ultra comfortable thanks to reinforced contact surface for palms
- 100% silicone for maximum grip
- Lock-on design to eliminate twisting
Seatpost clamp
- Quick-release aluminum seatpost clamp
- Extra-long quick-release lever, easy to operate requiring only minimal strength
- No risk of turning and/or twisting
Drivetrain
- Lightweight forged aluminum 110 mm cranks with
- narrow Q-factor
- Narrow-wide chainring with 28 teeth
- Cassette with 11–32 teeth
- Platform pedals made from fiber-reinforced nylon with metal pins for added grip
- Cr-Mo axle and sealed industrial-grade ball bearings
Brakes
- Hydraulic disc brakes by Promax
- Rotor diameter front/back: 140/140 mm
- Ergonomic brake levers designed for children's hands
Included tools
- 4 mm hex key for stem
- 8 mm hex key for front wheel and pedals
Colors
- black
- terra coppa
Weight
8.1 kg (without pedals)
Weight limit
50 kg (maximum combined weight of bicycle, rider and cargo)
Shipping dimensions
112 x 64 x 23 cm
Your OFF-road adventure can begin shortly!
In just a few steps, your woom OFF will be ready for its first ride. Check out this video to find out exactly what to do.
Assembly instructions
Instructions for use
Find more information in our Service & Info area.
Our woom bikes don't come with any additional accessories. You need to add optional extras like kickstands and mudguards on our equipment page.
If your child plans on cycling on public roads and streets, their bike may need to meet certain standard requirements before it can be considered legal in your country of residence. In many countries, bikes must be equipped with a bike bell, front and rear lights, and wide-angle Z reflectors. As rules for cyclists and their equipment vary from country to country, find out about the regulations applicable to riding a woom bike in road traffic in your country or region, particularly regarding the use of lights, reflectors and other obligatory safety equipment.
Superlight frame
The superlight aluminum frame has capable off-road geometry with a long wheelbase and slack steering angle for improved stability and smooth, responsive handling. Extra confidence comes from the kink in the top tube, which makes it easy to dismount quickly in any situation.
Durable carbon fork
Superlight and super stylish – the carbon fork balances maximum stability with minimum weight. Multidirectional carbon fibers ensure plenty of torsional strength when steering and braking. That makes the bike strong and stable even on the roughest terrain.
Ergonomic contact points
The age-appropriate MTB saddle and ergonomically profiled handlebar grips add comfort, while the hard-wearing platform pedals with metal pins provide the necessary grip for all-terrain riding.
Precise shifting
The precise and intuitive SRAM X5 rear derailleur has nine gears and a wide gear range thanks to the 28-tooth chainring up front and an 11–32 cassette at the rear. The easy-to-operate trigger shifter operates smoothly and reliably to make light work for children’s thumbs.

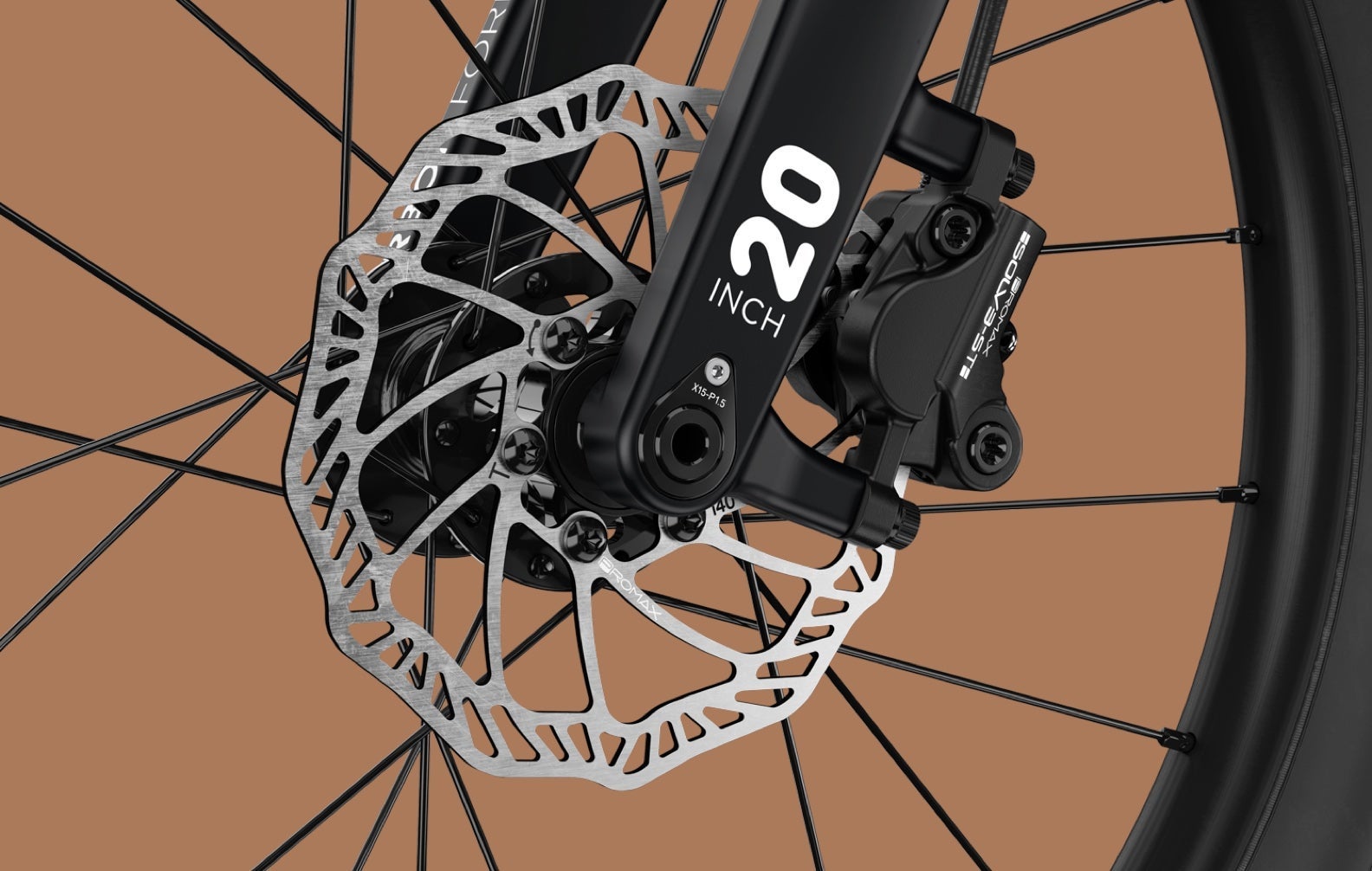

Reliable disc brakes
Easy-to-modulate disc brakes are teamed with child-specific, reach-adjustable brake levers to provide maximum stopping power and control in every situation including steep slopes and wet conditions.

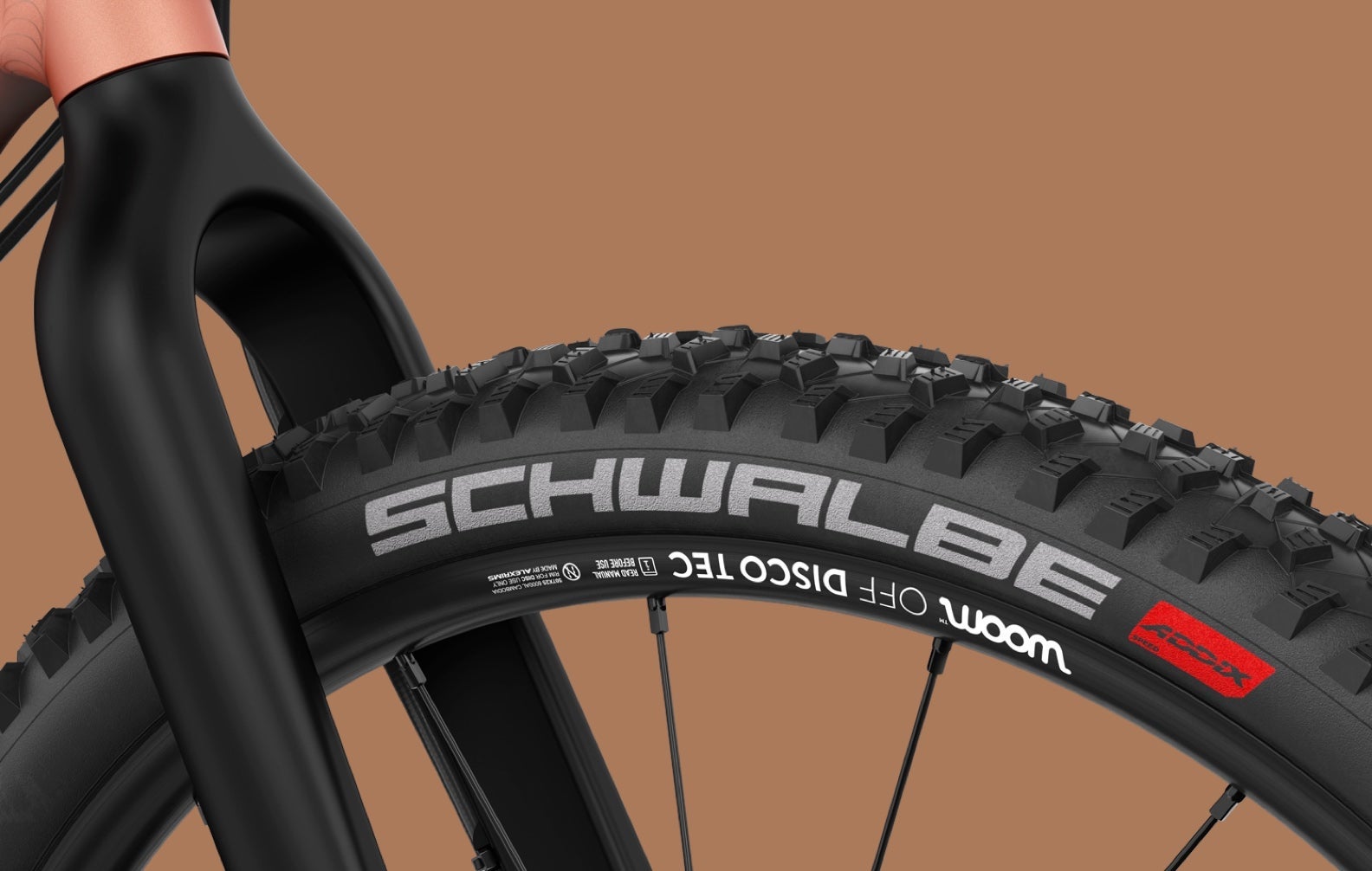

Grippy tubeless-ready MTB tires
High-quality Schwalbe mountain bike tires combine low rolling resistance with superior grip and proven durability. With Tubeless Easy technology and tubeless-ready rims, it’s a straightforward transition to go tubeless and benefit from added comfort and grip.
Lightweight flip-flop stem
Specially developed from forged aluminum, the stem pairs the ultimate stiffness with the lowest possible weight. Thanks to its flip-flop design, there’s the option to raise the height of the bars simply by inverting it.
The woom 10-year warranty*
Inspiring children to love riding their bikes is our mission at woom. That's why we guarantee the premium quality of every bike down to the last detail with innovative technology and long-lasting materials. In fact, we're so confident in our quality promise that we're offering to extend our warranty on frames, rigid forks, handlebars, stems and cranks from the usual two years to a full ten years – for free.
We have full confidence in our bikes, which is why we offer a 10-year warranty on the aluminium frames, rigid forks, bars and stem once you've registered online.
WARRANTY TERMS AND CONDITIONS
woom offers a 10-year manufacturer's guarantee on aluminium frames, rigid forks, handlebars and stem.
The initial activation of the 10-year warranty requires customers to register on the woom website within nine weeks from the date of purchase of a new woom bike upon submission of proof of purchase.
Provided that the bike has been registered properly, claims under the warranty must always be made via an authorised woom dealer (ideally the dealer that originally sold the bike) or through direct contact with woom if the bike was purchased from the woom online shop. To make a claim directly, send us an e-mail at [email protected] with the frame number, proof of purchase, proof of service (only required for used bikes) and photos or videos clearly showing the defect.
If a claim is made under the warranty, woom may choose to repair or replace any faulty parts at its own discretion. If a part cannot be replaced because the type, size or colour is no longer available, woom can provide a part regarded as a next-generation part to satisfy the claim made under the warranty. If a part or product is no longer being made at all or if no suitable spare part is available, woom reserves the right to exclude the warranty claim woom is under no obligation to provide original spare parts. No further claims can be made except for items expressly covered by this warranty. The warranty does not cover compensation for direct or indirect consequential damage. The buyer must cover any costs incurred for labour and/or postage and packaging costs.
The warranty is not extended or renewed when a claim is made under the warranty.
The warranty applies only to private end consumers. The warranty does not apply to end consumers using the products for their work, e.g. at a nursery or playgroup.
The guarantee applies internationally and can be transferred since it is tied to the product and not a person.
Legal warranty rights remain unaffected.
What is covered by the warranty?
| Components/products | Warranty duration |
Material defects and production faults with the frame, rigid fork, handlebars, stem | Ten years from the date of purchase* |
E-mountain bike battery (woom UP) | Two years from the date of purchase |
KIDS' Helmet | Two years from the date of purchase |
What is not covered by the warranty?
- Damage caused by crashes or accidents
- Suspension forks or suspension elements
- Components susceptible to wear and tear like LEDs, dynamos, chains, tyres, rims, brake pads, grips, hubs, headset and bottom bracket bearings, and cranks
- Damage to the paintwork
- Damage caused by improper use, e.g. freestyling, stunts and any other overuse
- Damage due to lack of care
- Improper repairs performed by third parties who are not authorised woom dealers
- Bikes that have had their frame numbers changed, removed or made illegible
- Changes made to the original bike design and the addition of parts that are not approved for use with the bike
If you buy a woom product and are not 100% satisfied, or if you didn't order the right size, you have 30 days to send it back to us free of charge from within the EU for either a refund or an exchange.
This also applies to your new woom bike, even if your child has already ridden it.
We will cover the return shipping costs and either refund the full amount you originally paid or send you a new bike in the requested size.
Everything you need to know about our cancellation policy can be found here.
